Installing motor for sliding roof

NOTE:
  • Do not press on or touch the transmission/reception diodes with your fingers.
  • The cover lenses must not be soiled or smudged with grease.
  1. Engage electrical plug connection and carefully lay the wire (do not pinch).
    NOTE: Always replace the fastening screws of the motor for the sliding roof after they have been loosened (micron capsulated).
  2. Position engine for sliding roof in the teeth of the frame for the sliding roof and fasten with the Torx fastening screws -arrows-  . Tightening torque: -6 Nm (4.5 ftlb.)-

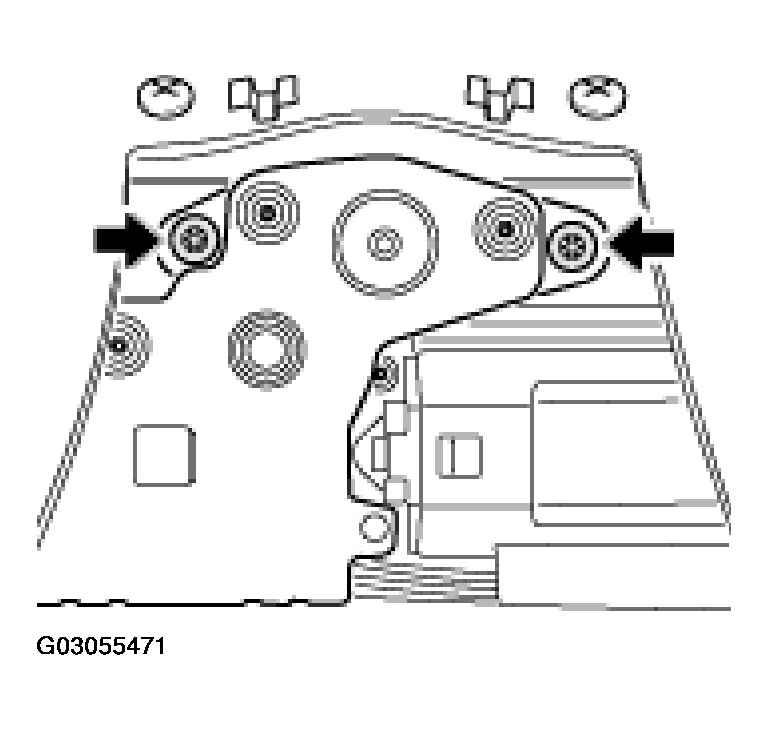

    Fig 1: Tightening Motor For Sliding Roof Torx Fastening Screws
    G03055471Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Engage cover on the windscreen frame at front and push rearward. Unclip locking tabs -arrows B-  of the cover on the left and right. Tighten fastening screws -A-  with a crosshead screwdriver.

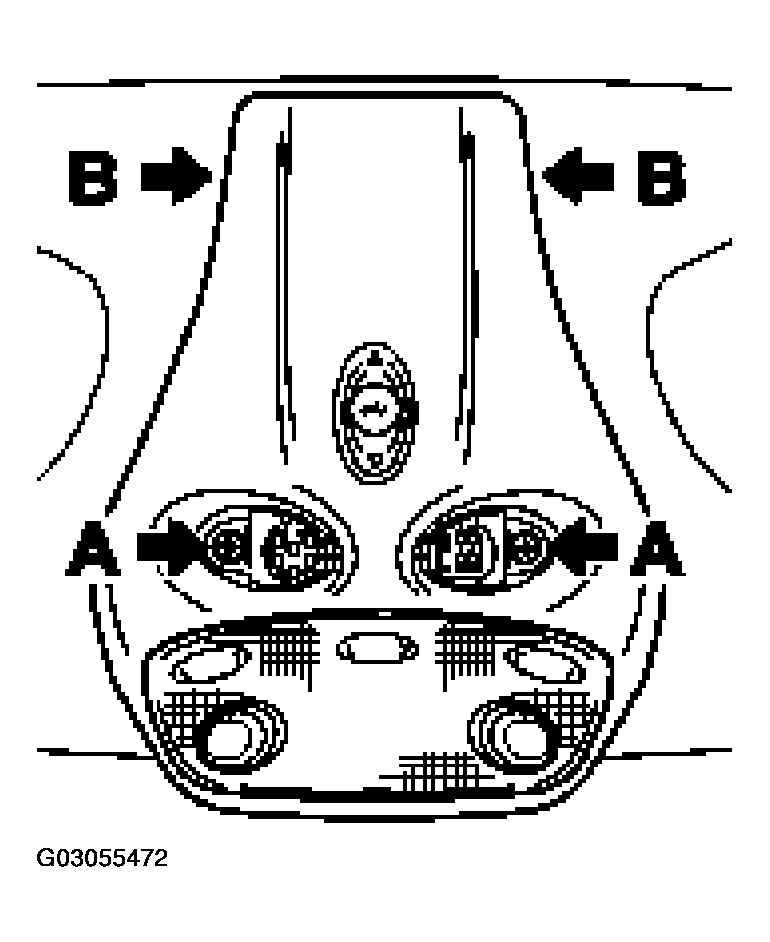

    Fig 2: Unclipping Locking Tabs & Tightening Fastening Screws
    G03055472Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Fit cover lenses.
