Emergency operation on motor for sliding roof
The motor for the sliding roof can also be operated manually if the electric drive should fail. Check fuse D 3 before emergency operation.

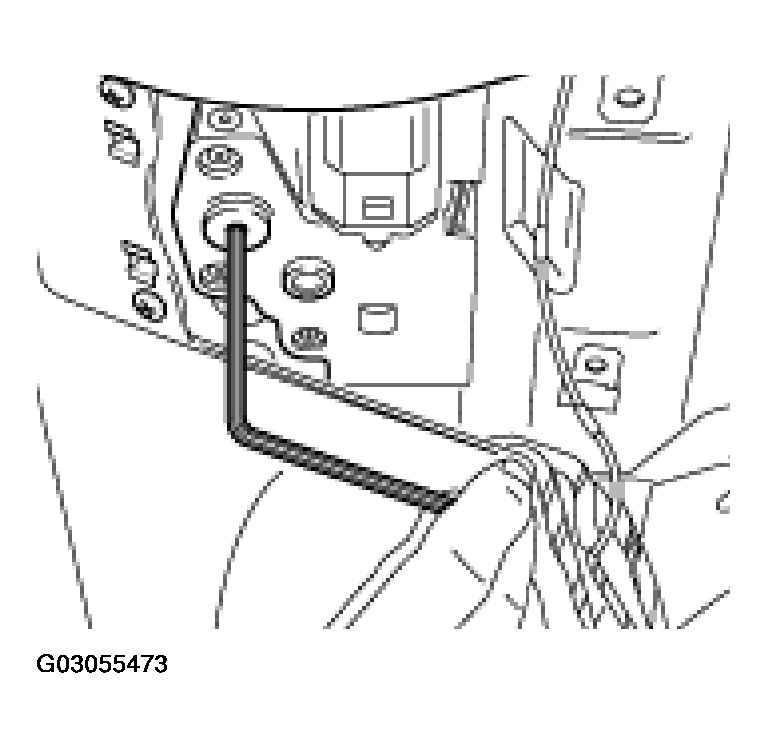

- An angle screwdriver (a/f 4 hexagon socket) is clipped in behind the cover. The drive axle can be turned with the angle screwdriver. Refer to Fig 1. The motor for the sliding roof must not be operated again after emergency operation.
