Installing frame for sliding roof: Notes
SLIDING ROOF FRAME INSTALLING PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

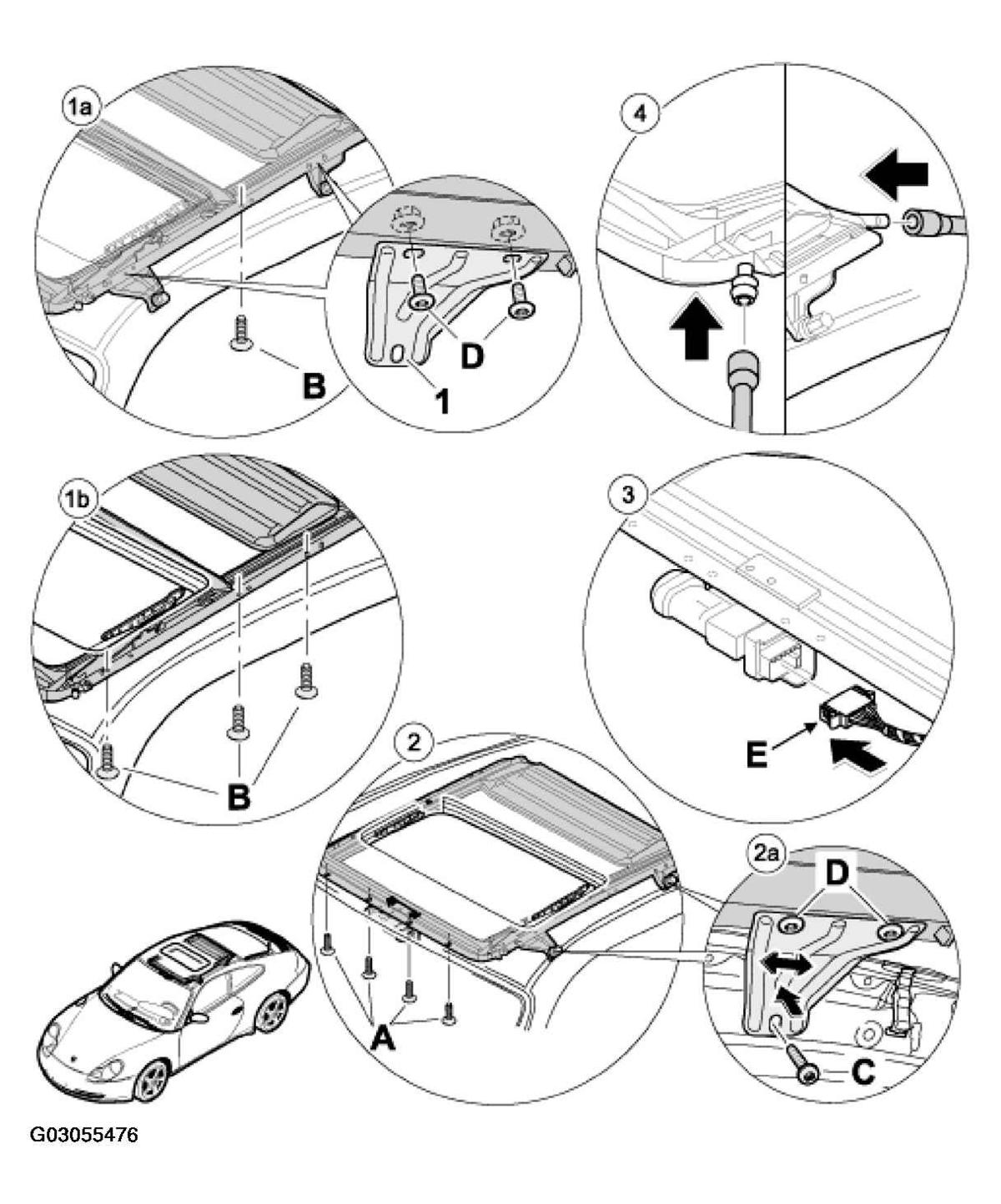

| Prefitting side holder -1- . See Fig 1. | Position side holder for sliding roof frame and fasten with fastening screws -D- . See Fig 1. | |
| Inserting frame for sliding roof into the vehicle | Insert sliding roof frame with an assistant into the passenger compartment through the door aperture and position at the screw-mounting points. | |
| 1a | Screwing in the fastening screws -B- . See Fig 1. | Position the fastening screw of the sliding roof frame at the side and the fastening screws of the retaining bracket on the roof frame at the side and tighten by hand. |
| 1b | Screwing in the fastening screw -B- . See Fig 1. | Position the fastening screw of the sliding roof frame at the side and tighten by hand. |
| 2 | Screwing in the fastening screws -A- . See Fig 1. | Position the fastening screws on the sliding roof frame at the front and tighten by hand. |
| 2a | Screwing in the fastening screws of the holder -C- . See Fig 1. | Position the fastening screws of the retaining brackets -C-arrows-D- . See Fig 1. |
| Tightening the fastening screws with the correct tightening torque | Tighten all fastening screws according to the following table. | |
| 3 | Connecting electrical plug connection | Plug in the electrical plug connection. The locking tabs -arrow E- . See Fig 1. |
| 4 | Pushing on water drain hoses | Push the water drain hoses at the front and rear onto the water drain brackets of the frame for the sliding roof. |
| Installing sliding roof panel | Refer to Removing and installing sliding roof panel . | |
| Installing roof lining | Refer to REMOVING AND INSTALLING ROOF LINING . |
