Removing the microswitch for the sliding roof > closed <

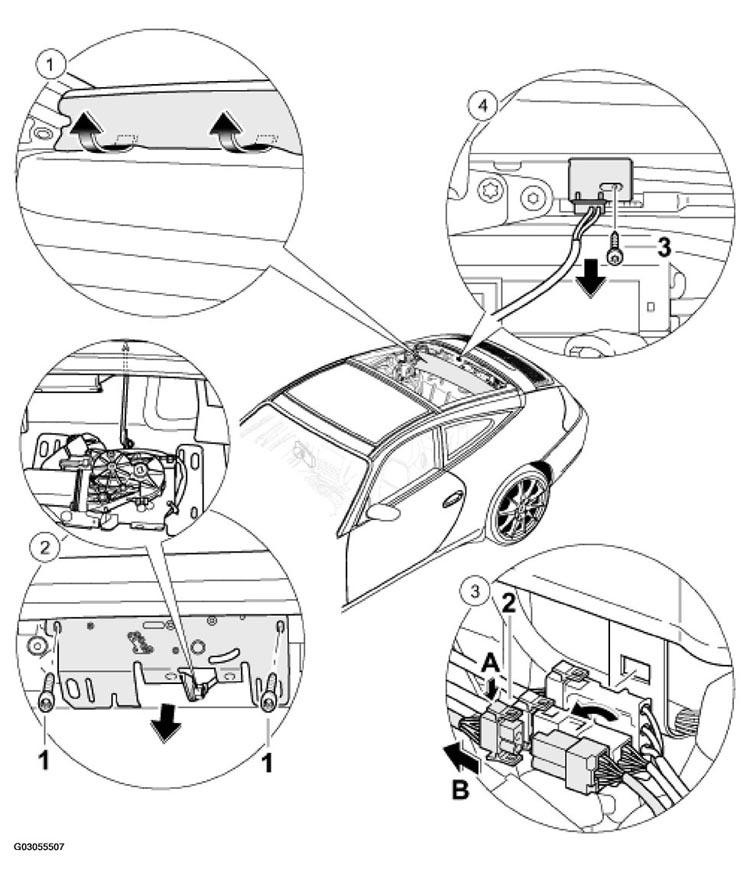

Fig 1: Removing Microswitch For Sliding Roof (Closed) - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

• Mark position of the microswitch with coloured ink.

MICROSWITCH REMOVING PROCEDURE - TARGA

No.	Procedure	Instructions
1	Removing rear wall lining	Hold rear cover at the side underneath and carefully pull out of the clips in the -direction of arrow-  . See Fig 1.
2	Folding closing aid over	Unscrew the fastening screws -1-inset-  . See Fig 1.
3	Undoing microswitch plug connection	Turn the plug unit anti-clockwise and remove it from the body. -A-2-B-  . See Fig 1.
		Press the plugs together -A-2-B-  . See Fig 1.
4	Removing microswitches	Unscrew fastening screw -3-  . See Fig 1.
