Removing right electric motor for sliding roof
NOTE:
- Remove ignition key.
- Always remove only one sliding roof motor. This ensures that the sliding roof does not shift and so avoids the need for a complicated adjustment.
- The sliding roof motor can be removed regardless of the roof position.
- The rear lid can be opened with the emergency operation mechanism from inside after removal of the rear wall lining, regardless of the roof position. See Sliding roof emergency operation mechanism .
RIGHT ELECTRIC MOTOR REMOVING PROCEDURE - TARGA
| No. | Procedure | Instructions |
|---|---|---|

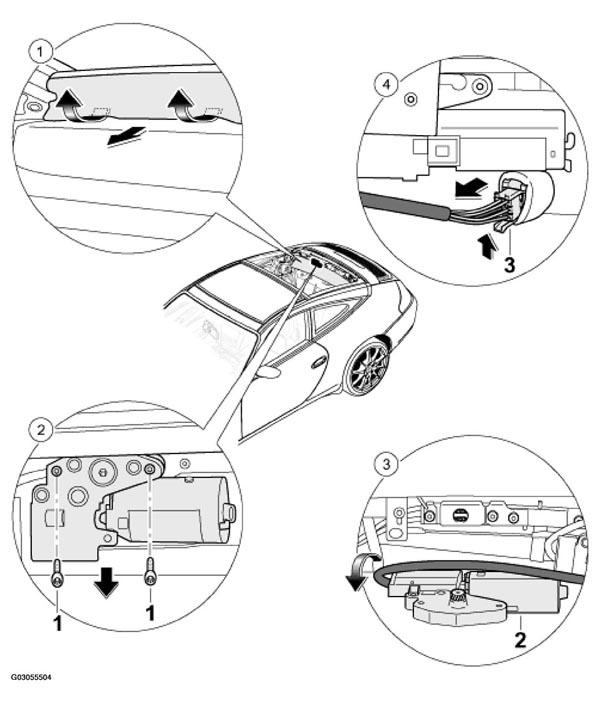

| 1 | Removing rear wall lining | Hold rear cover at the side underneath and carefully pull out of the clips in the -direction of arrow- . See Fig 1. |
| 2 | Unscrewing the roof motor | Undo fastening screws -1- . See Fig 1. |
| 3 | Removing the roof motor | Remove the roof motor -2- . See Fig 1. |
| 4 | Disconnecting the plug connection | Push up the unlocking lever on the plug connection -arrow- . See Fig 1. |
