Removing left electric motor for sliding roof
NOTE:
- Remove ignition key.
- Always remove only one sliding roof motor. This ensures that the sliding roof does not shift and so avoids the need for a complicated adjustment.
- The sliding roof motor can be removed regardless of the roof position.
- The rear lid can be opened from inside after removal of the rear wall lining, regardless of the roof position. See Sliding roof emergency operation mechanism .
LEFT ELECTRIC MOTOR REMOVING PROCEDURE - TARGA
| No. | Procedure | Instructions |
|---|---|---|

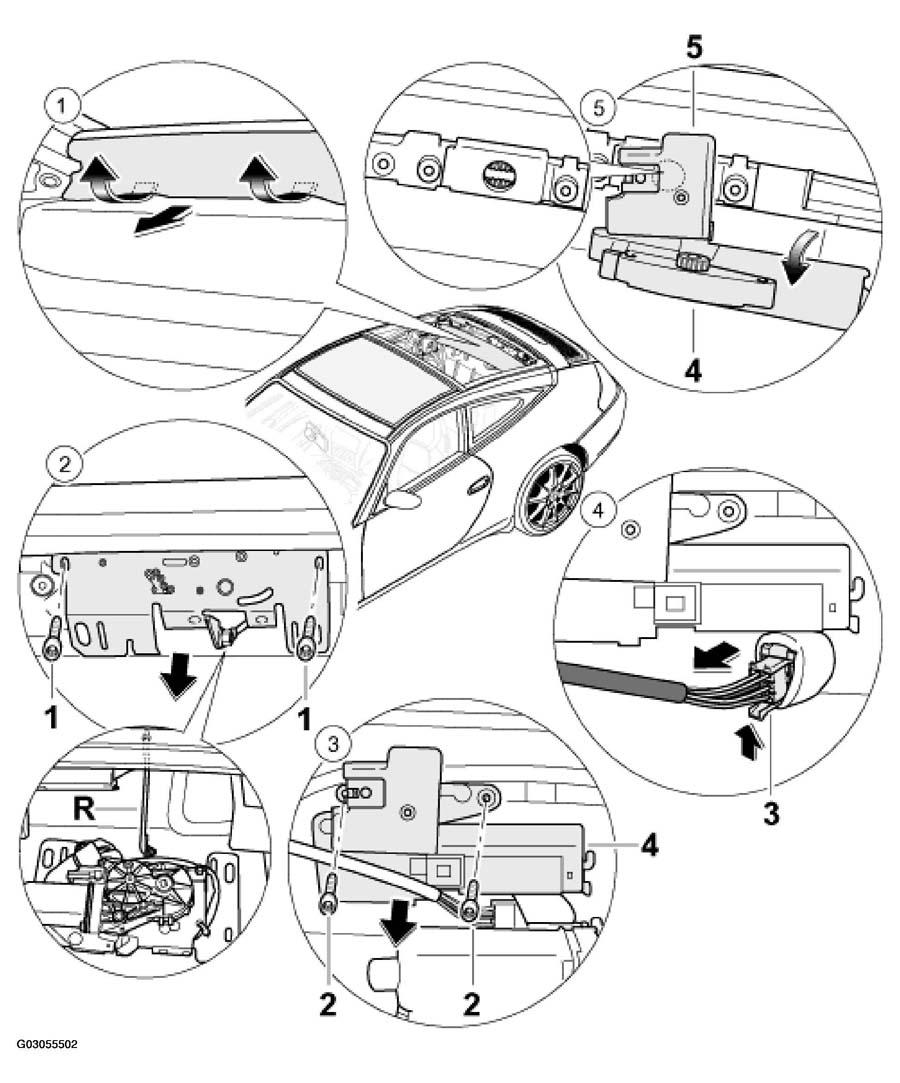

| 1 | Removing rear wall lining | Hold rear cover at the side underneath and carefully pull out of the clips in the -direction of arrow- . See Fig 1. |
| 2 | Folding closing aid over | Unscrew the fastening screws -1-R- . See Fig 1. |
| 3 | Unscrewing the electric motor -4- . See Fig 1. | Undo fastening screws -2- . See Fig 1. |
| 4 | Disconnecting the plug connection | Push up the unlocking lever on the plug connection -3-arrow- . See Fig 1. |
| 5 | Removing the electric motor | Remove the electric motor for the sliding roof -4-5- . See Fig 1. |
