Installing the microswitch for the sliding roof > closed <

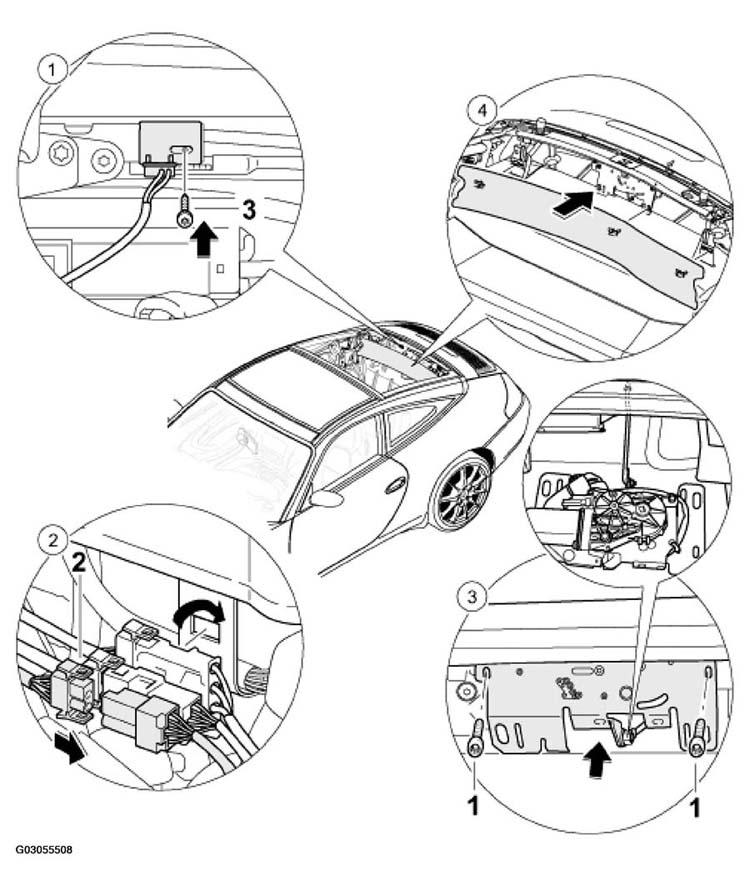

Fig 1: Installing Microswitch For Sliding Roof (Closed) - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

MICROSWITCH INSTALLING PROCEDURE - TARGA

No.	Procedure	Instruction
1	Installing microswitch	Insert microswitch and position the fastening screw -3-  . See Fig 1.
2	Connecting the plug connection	Push on the plug of the microswitch and press together until the plug -2-arrow-  . See Fig 1.
3	Installing the closing aid holder	Fold the closing aid holder upwards in the -direction of the arrow-inset-1-  . See Fig 1.
4	Installing rear wall lining	Position cover and push on in the -direction of the arrow-  . See Fig 1.
