Removing cover of cowl panel

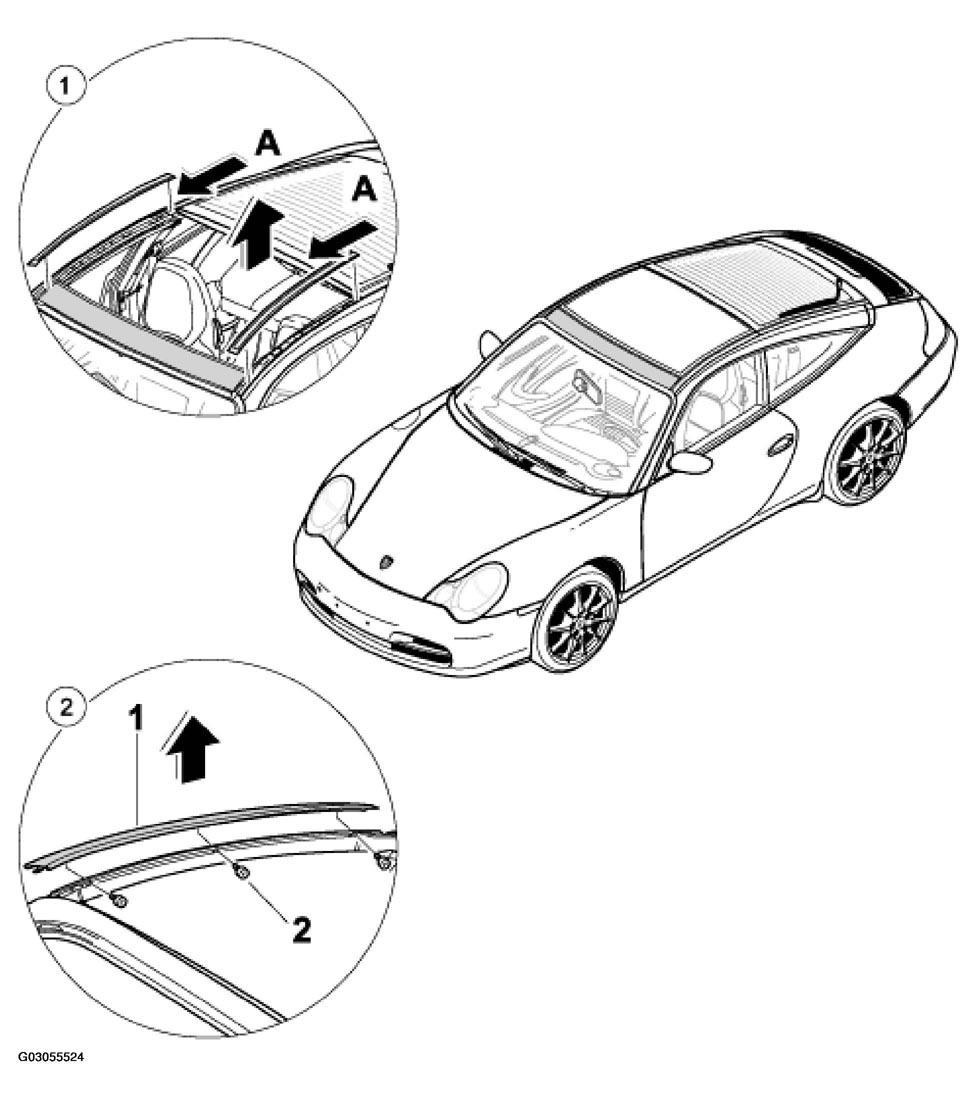

Fig 1: Removing Cover Of Cowl Panel - Targa
G03055524Courtesy of PORSCHE OF NORTH AMERICA, INC.
COWL PANEL COVER REMOVING PROCEDURE - TARGA

No. Procedure Instructions
1 Removing roof joint strip Move roof joint strip 1 cm in -direction of arrow-  . See Fig 1.
2 Removing cover of cowl panel Unscrew fastening screws-2-1-  . See Fig 1.
