Disassembling frame for sliding roof
NOTE:
- The following parts must be transferred from the sliding roof frame to be replaced to the new sliding roof frame: motor for sliding roof, draught deflector, frame clips.
SLIDING ROOF FRAME DISASSEMBLING PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|
| Refer to REMOVING AND INSTALLING ROOF LINING . | ||
| Refer to Removing and installing frame for sliding roof . | ||

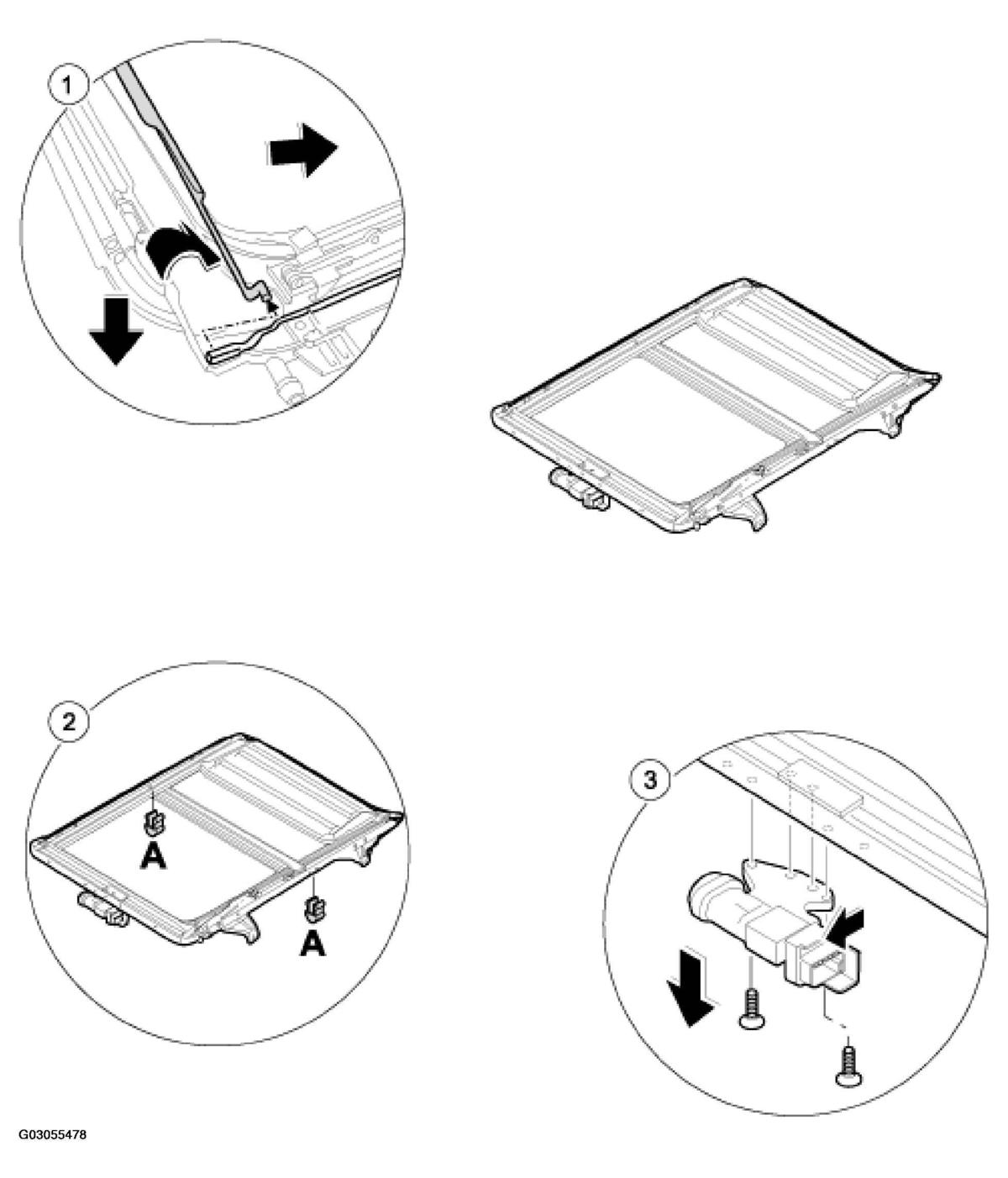

| 1 | Remove draught deflector | Fold the draught deflector up, press it inwards and out of the guides at the left and right sides and pull it out. |
| 2 | Remove frame clips | Press in the left and right tabs of the frame clip -A- . See Fig 1. |
| 3 | Detach motor for sliding roof | Unscrew both Torx T25 fastening screws and take motor for sliding roof down and off the teeth of the sliding roof frame. |
| Refer to Removing and installing motor for sliding roof . |
