Assembling frame for sliding roof
SLIDING ROOF FRAME ASSEMBLING PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

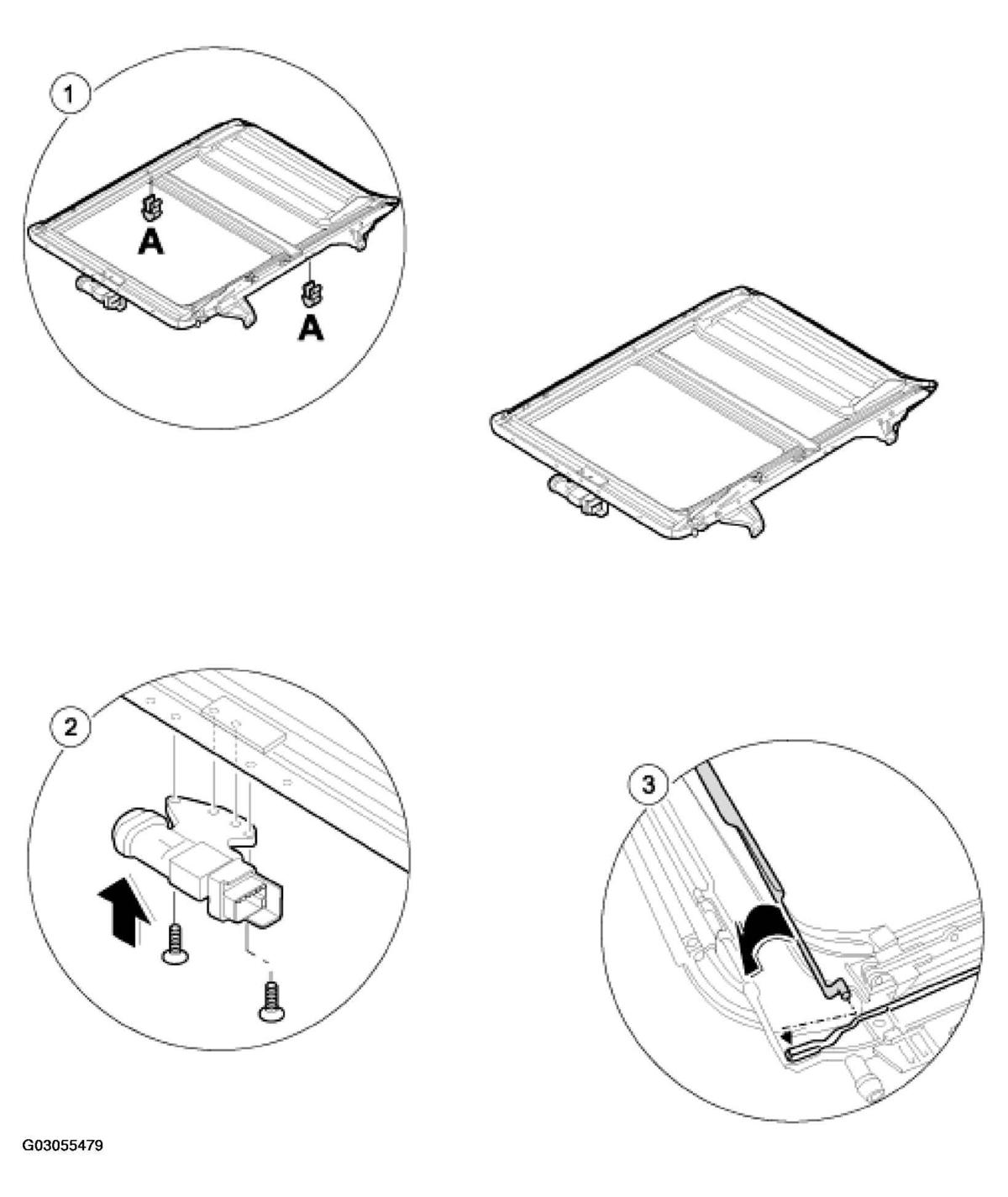

| 1 | Fit frame clips | Press the frame clips -A- . See Fig 1. |
| 2 | Fit motor for sliding roof | Position motor for sliding roof into the teeth of the frame. Screw in with the Torx T25 fastening screws and tighten. -6 Nm (4.5)- Tightening torque: -6 Nm (4.5)- Refer to Removing and installing motor for sliding roof . Refer to Re-teaching motor for sliding roof . |
| 3 | Fit draught deflector | Press the draught deflector in on the left and right and insert it into the guides at the sides. Fold up the draught deflector. |
