Removing support bow

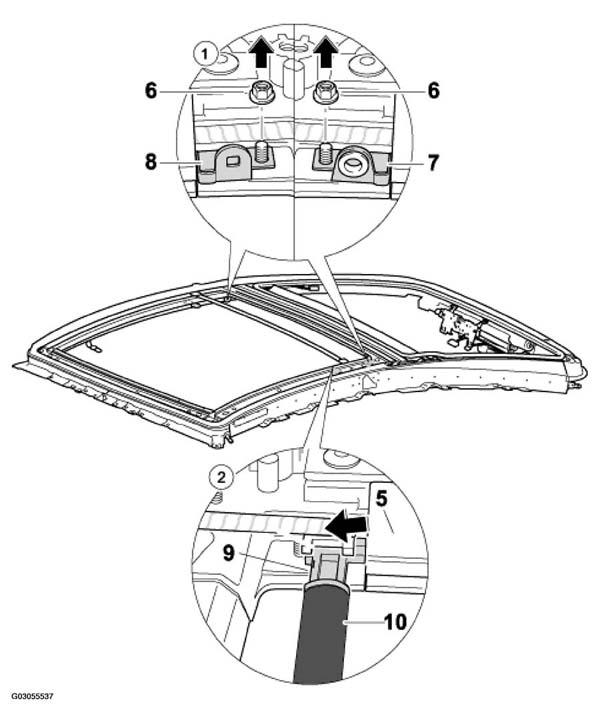

Fig 1: Removing Support Bow

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SUPPORT BOW REMOVING PROCEDURE

No.	Procedure	Instructions
	Removing drive tubing for sun blind	See Removing drive tubing for sun blind .
1	Removing mount of blind shaft	Unscrew the fastening screw -6-7-8- . See Fig 1.
2	Removing support bow and bracket	Remove support bow -10-9-5- . See Fig 1.
