Switch for seat adjustment

Manual adjustment of the seat positions is carried out by actuating the three switches located on the driver's seat (front seat).

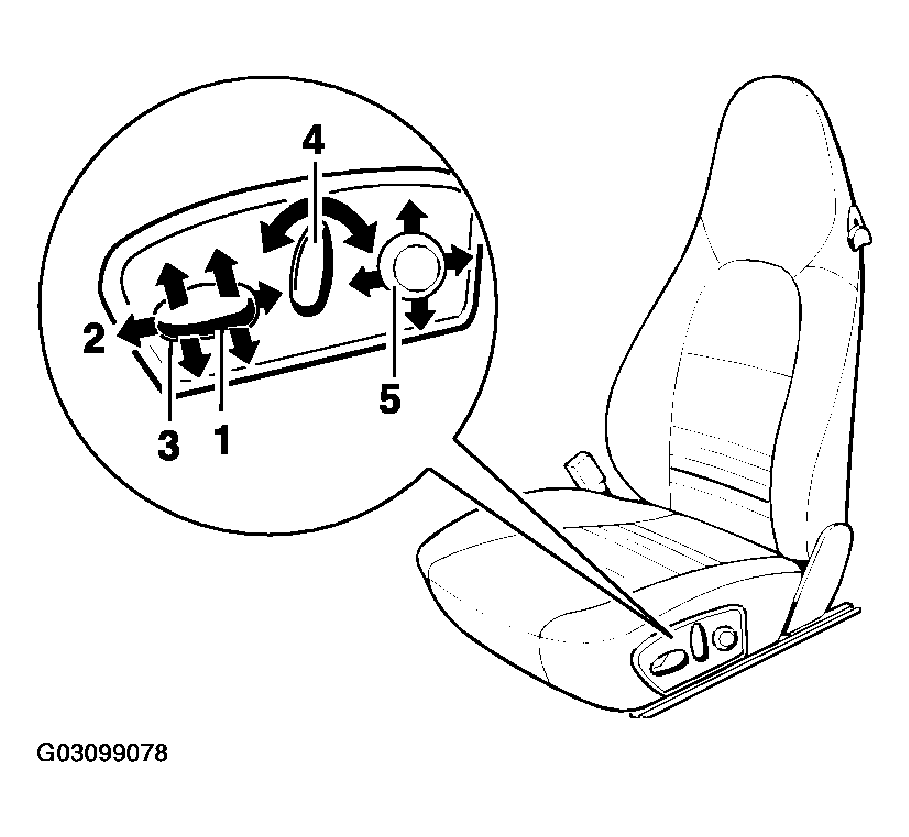

1. Fore-and-aft adjustment and height adjustment are carried out by actuating the switch in the positions shown in Fig 1 .
2. The seat backrest can be brought into desired position

   by actuating the switch.

3. The lumbar support is inflated or deflated by actuating the switch.
   Fig 1: Identifying Switch Positions For Seat Adjustment

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

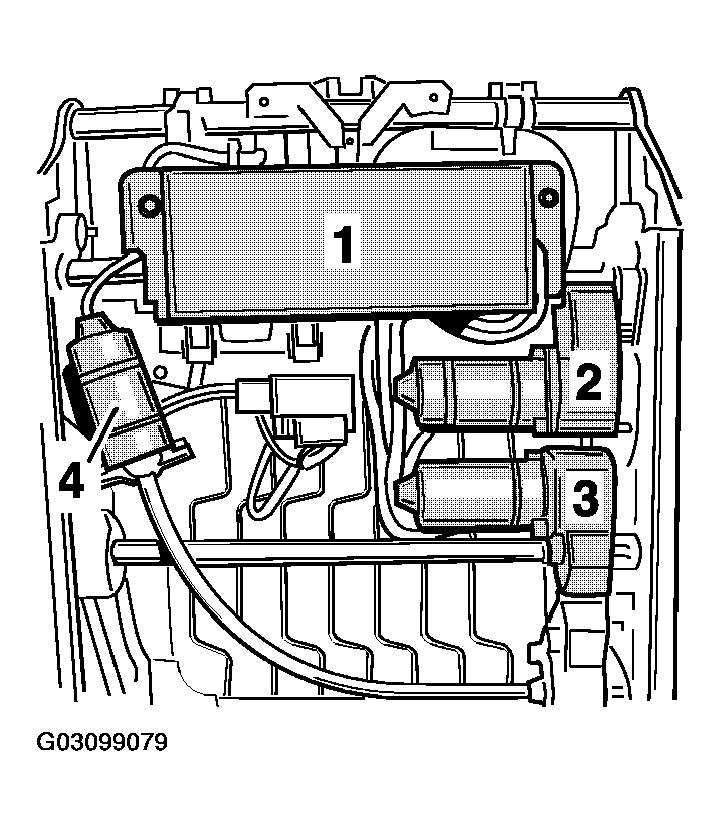

Fig 2 shows how the following system components are

arranged under the front seat.

1. Control module
2. Electric motor for front height adjustment
3. Electric motor for seat adjustment
4. Electric motor for rear height adjustment
   Fig 2: Identifying Seat Adjustment System Components

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
