Plug No. 7

Plug No. 7 has 26 poles. The pin assignment is shown in Fig 1 .

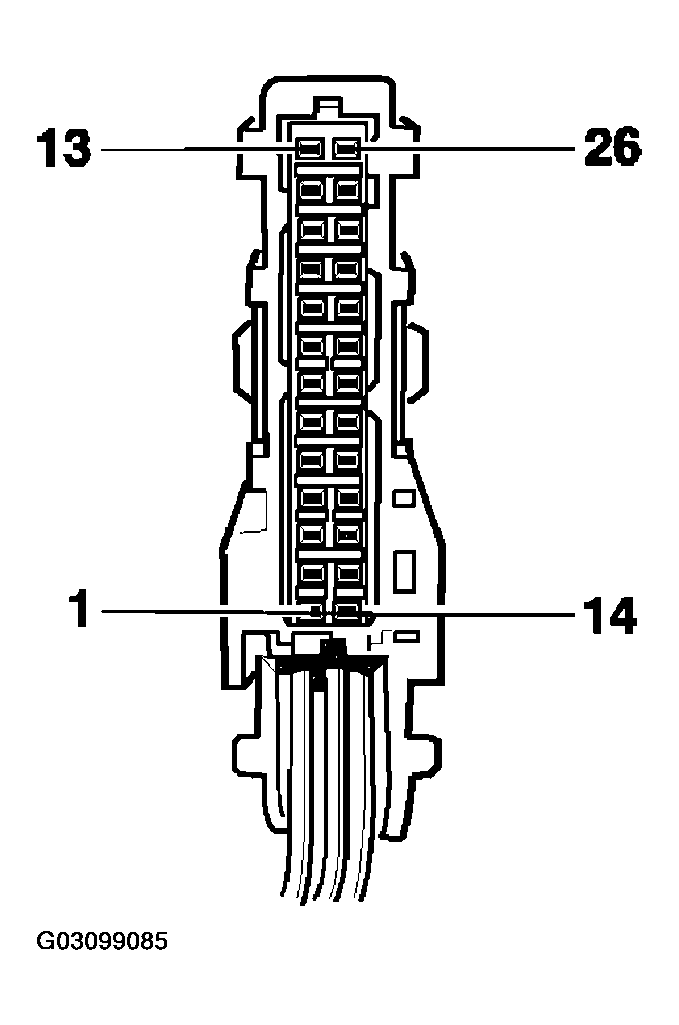

Fig 1: Identifying Pin Assignment (Plug No. 7)

G03099085

Courtesy of PORSCHE OF NORTH AMERICA, INC.
