Connector assignment

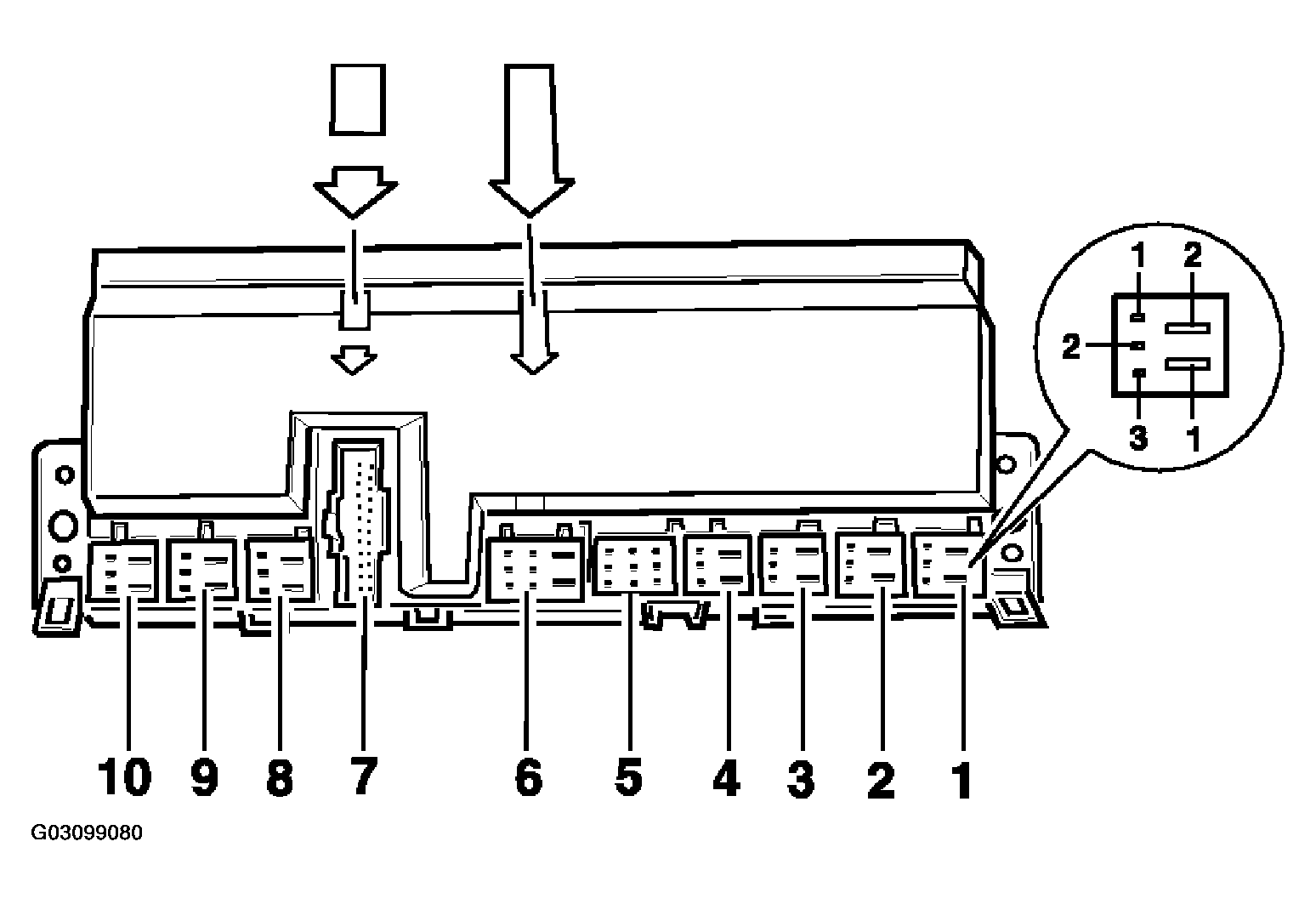

Fig 1: Identifying Connector Plugs On Control Module
G03099080Courtesy of PORSCHE OF NORTH AMERICA, INC.

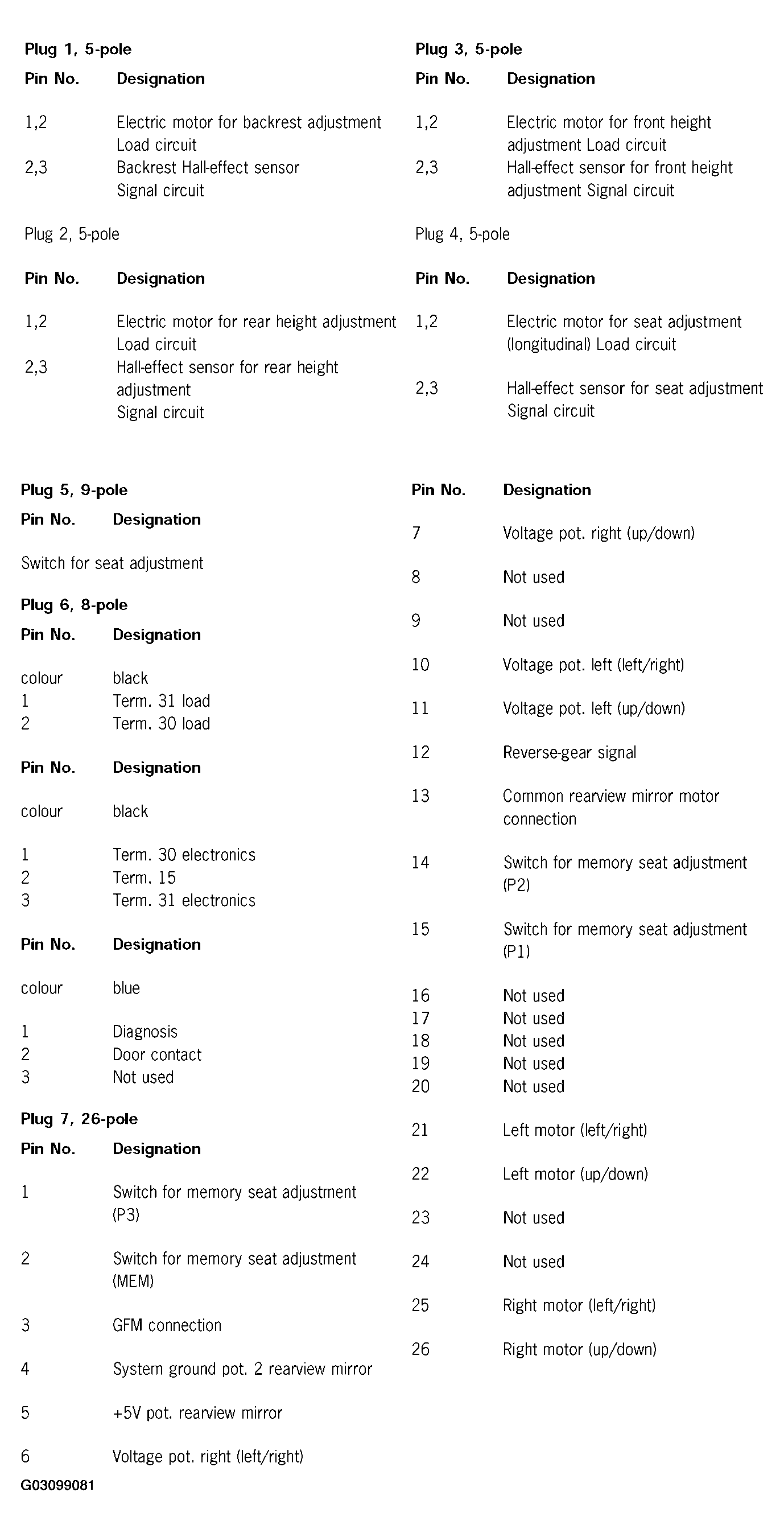

Fig 2: Identifying Connector Plug Pin Assignments
G03099081Courtesy of PORSCHE OF NORTH AMERICA, INC.
