Removing front seat

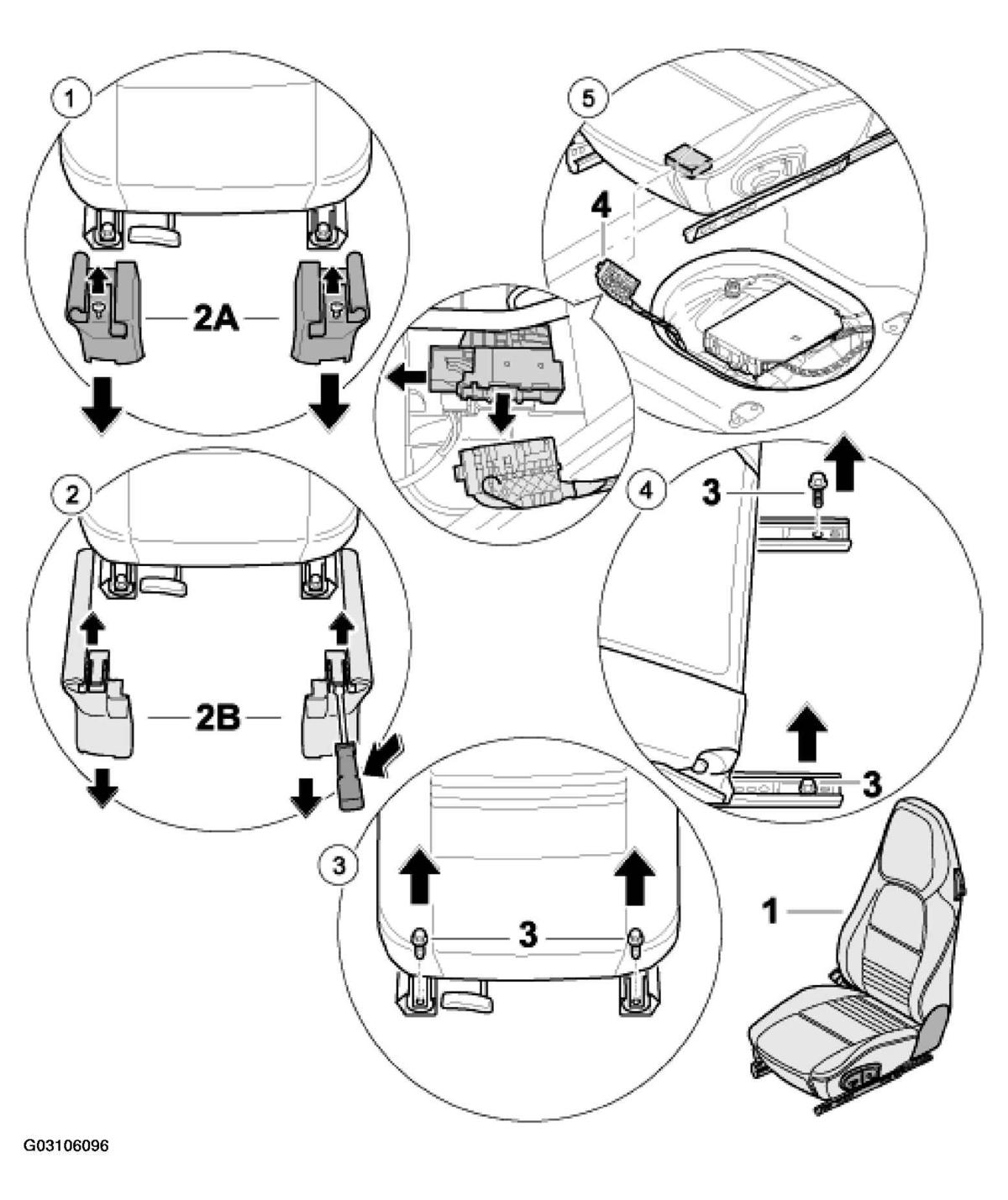

Fig 1: Removing Front Seat (As Of MY 1996)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT SEAT REMOVING PROCEDURE (AS OF MY 1996)

No.	Procedure	Instructions
1	Removing seat rail cover -2A- . See Fig 1 .	Unscrew the sheetmetal screws out of the seat rail cover at the front -2A-2A- . See Fig 1 .
2	Removing seat rail cover -2B- . See Fig 1 .	Insert a screwdriver under the locking tabs and press lightly upwards. -2B- . See Fig 1 . CAUTION: -2B- . See Fig 1 . Locking tabs can break. -2-B- . See Fig 1 . Pull front seat rail cover -2B- . See Fig 1 .
3	Undoing seat screws at front	Move seat to its rear limit position and undo the front M10 x 28 Torx screws -3- . See Fig 1 .
4	Undoing seat screws at rear	Move seat to its front limit position and undo the M10 x 28 Torx screws -3- . See Fig 1 .
5	Disconnecting the electrical plug connection	Release plug connector locking device on the side -arrow--- . See Fig 1 .
