Installing front seat

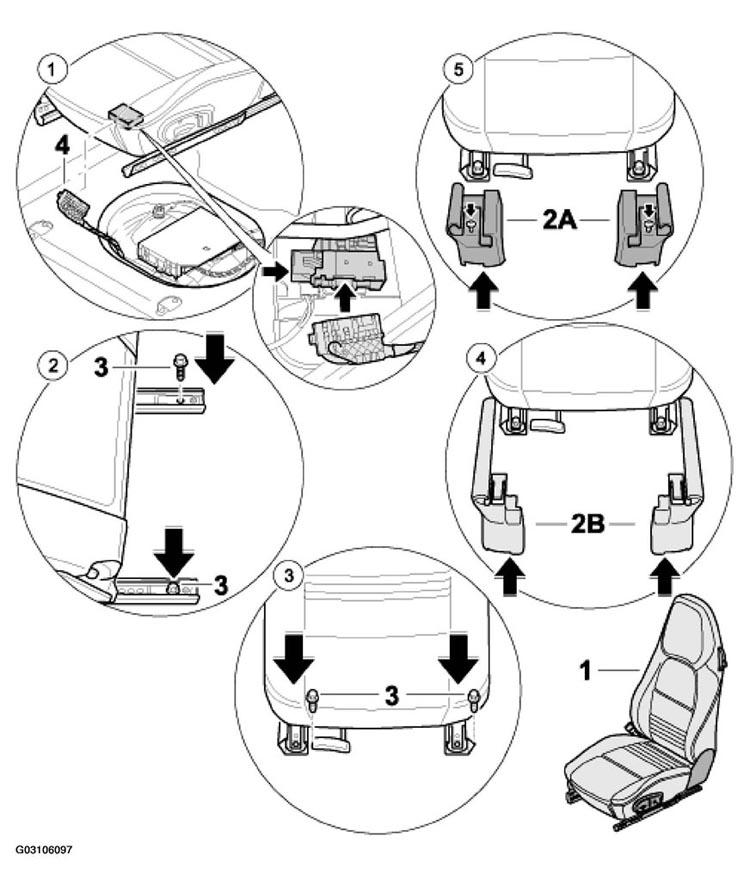

Fig 1: Installing Front Seat (As Of MY 1996)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT SEAT INSTALLING PROCEDURE (AS OF MY 1996)

No.	Procedure	Instructions
1	Connecting electrical plug connection	Join the plug connection -4-arrow- . See Fig 1 .
2	Fitting seat screws at rear	Position seat rails on the seat baseframe, screw the rear M10 x 28 Torx screws -3-65 Nm- . See Fig 1 .
3	Fitting seat screws at front	Move seat to its rear limit position, screw the front M10 x 28 Torx screws -3-65 Nm- . See Fig 1 .
4	Fitting seat rail cover -2B- . See Fig 1 .	Push seat rail cover -2B- . See Fig 1 .
5	Fitting seat rail cover -2A- . See Fig 1 .	Push seat rail cover -2A- . See Fig 1 .
