Removing electric motor for front seat height adjustment

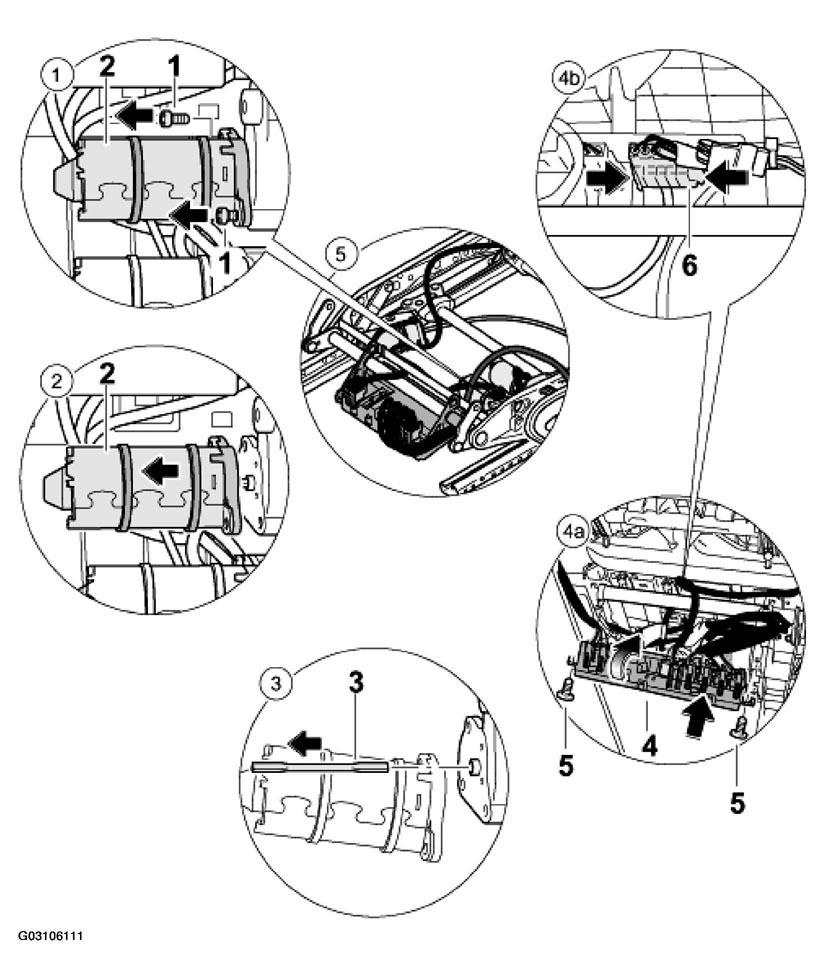

Fig 1: Removing Electric Motor For Front Seat Height Adjustment

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ELECTRIC MOTOR FOR FRONT SEAT HEIGHT ADJUSTMENT REMOVING PROCEDURE

No.	Procedure	Instructions
	Removing front seat	See REMOVING AND INSTALLING FRONT SEAT .
1	Fastening screws -1- . See Fig 1 .	Unscrew.
2	Electric motor -2- . See Fig 1 .	Remove.
3	Input shaft -3- . See Fig 1 .	Remove and check for damage.
4a	Control module -4- . See Fig 1 .	Undo screws -5-4-arrow- . See Fig 1 .
4b	Plug connection -6- . See Fig 1 .	Press plugs -6-arrow- . See Fig 1 .
5	Electric line	Cut tie wrap on motor with side cutters and remove unit.
