Installing electric motor for front seat height adjustment

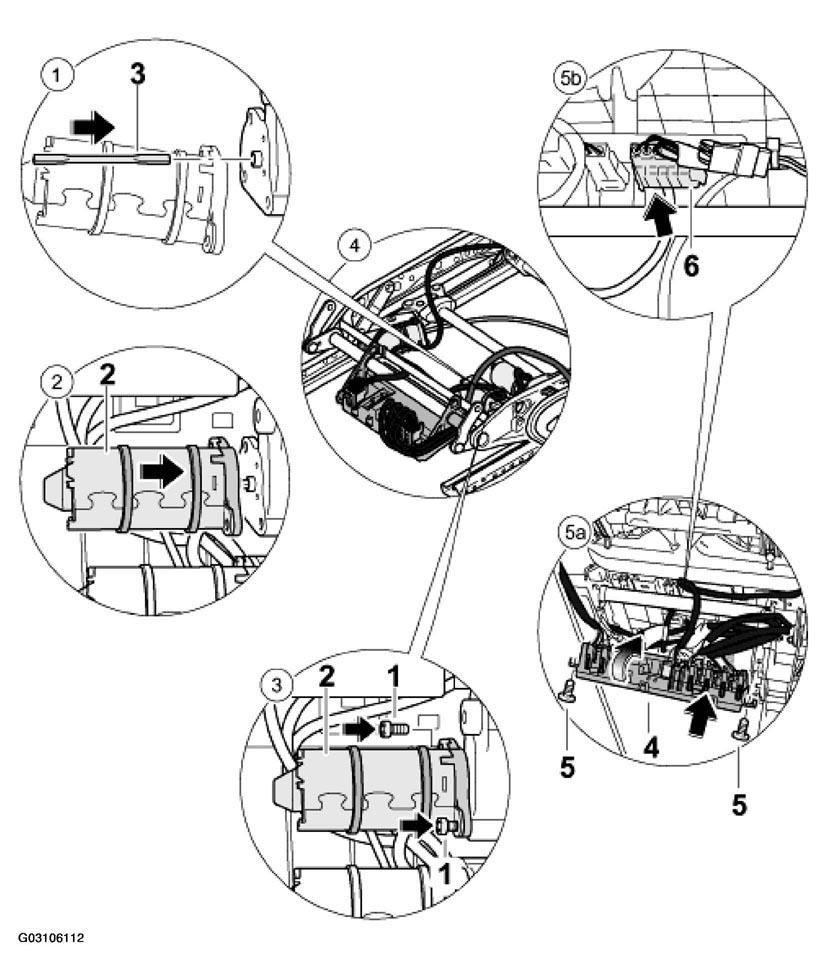

Fig 1: Installing Electric Motor For Front Seat Height Adjustment

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ELECTRIC MOTOR FOR FRONT SEAT HEIGHT ADJUSTMENT INSTALLING PROCEDURE

No.	Procedure	Instructions
1	Input shaft -3- . See Fig 1 .	Insert the input shaft -3- . See Fig 1 .
2	Electric motor -2- . See Fig 1 .	Push electric motor -2-3- . See Fig 1 .
3	Fastening screws -1- . See Fig 1 .	Position electric motor -2-1- . See Fig 1 .
4	Electric line	Observe line routing.
5a	Control module -4- . See Fig 1 .	Insert plug on control module -4-arrow-5- . See Fig 1 .
5b	Plug connection -6- . See Fig 1 .	Push crimp sockets into the plug -6- . See Fig 1 .
	Installing front seat	See REMOVING AND INSTALLING FRONT SEAT .
