Disassembling release for front lid

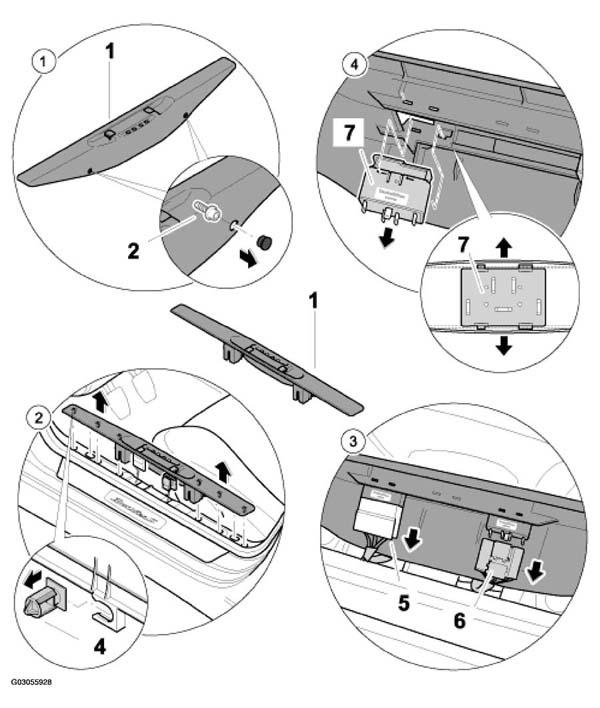

Fig 1: Disassembling Release For Front Lid (Driver's Side) - As Of Model Year 2001

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT LID RELEASE DISASSEMBLING PROCEDURE (DRIVER'S SIDE) - AS OF MODEL YEAR 2001

No.	Procedure	Instructions
1	Undoing hexagon socket head bolts -2- . See Fig 1 .	Remove plastic plugs -3-2- . See Fig 1 .
2	Removing sill -1- . See Fig 1 .	Lift sill -1-4- . See Fig 1 .
3	Pulling off plug connections -5, 6- . See Fig 1 .	Pull off plug connections -5, 6- . See Fig 1 .
4	Removing actuating switches for front lid -7, 8- . See Fig 1 .	Press the fastening ribs of the sill -arrows-7- . See Fig 1 .
