Assembling release for front lid

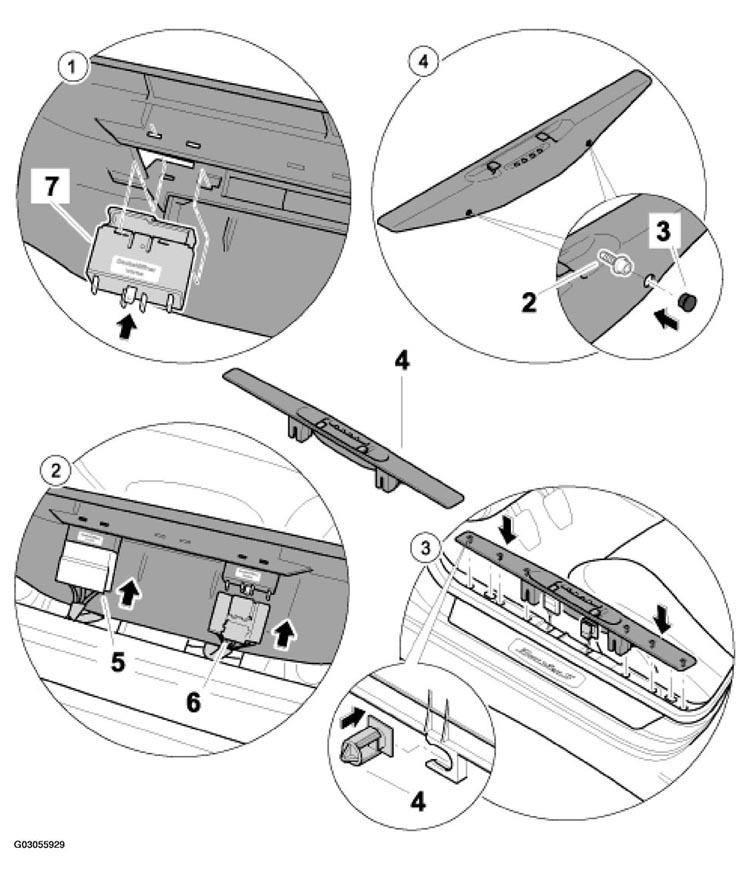

Fig 1: Assembling Release For Front Lid (Driver's Side) - As Of Model Year 2001

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT LID RELEASE ASSEMBLING PROCEDURE (DRIVER'S SIDE) - AS OF MODEL YEAR 2001

No.	Procedure	Instructions
1	Installing actuating switch for front lid -7- . See Fig 1 .	Clip locking tabs of the actuating switch for the front lid -7- . See Fig 1 .
2	Joining plug connections -5, 6- . See Fig 1 .	Push plug connections -5, 6- . See Fig 1 .
3	Attaching sill -1- . See Fig 1 .	Clip in new fastening clips -4-1- . See Fig 1 .
4	Tightening hexagon socket head bolts -2- . See Fig 1 .	Screw in hexagon socket head bolts -2-3- . See Fig 1 .
