Removing glove compartment

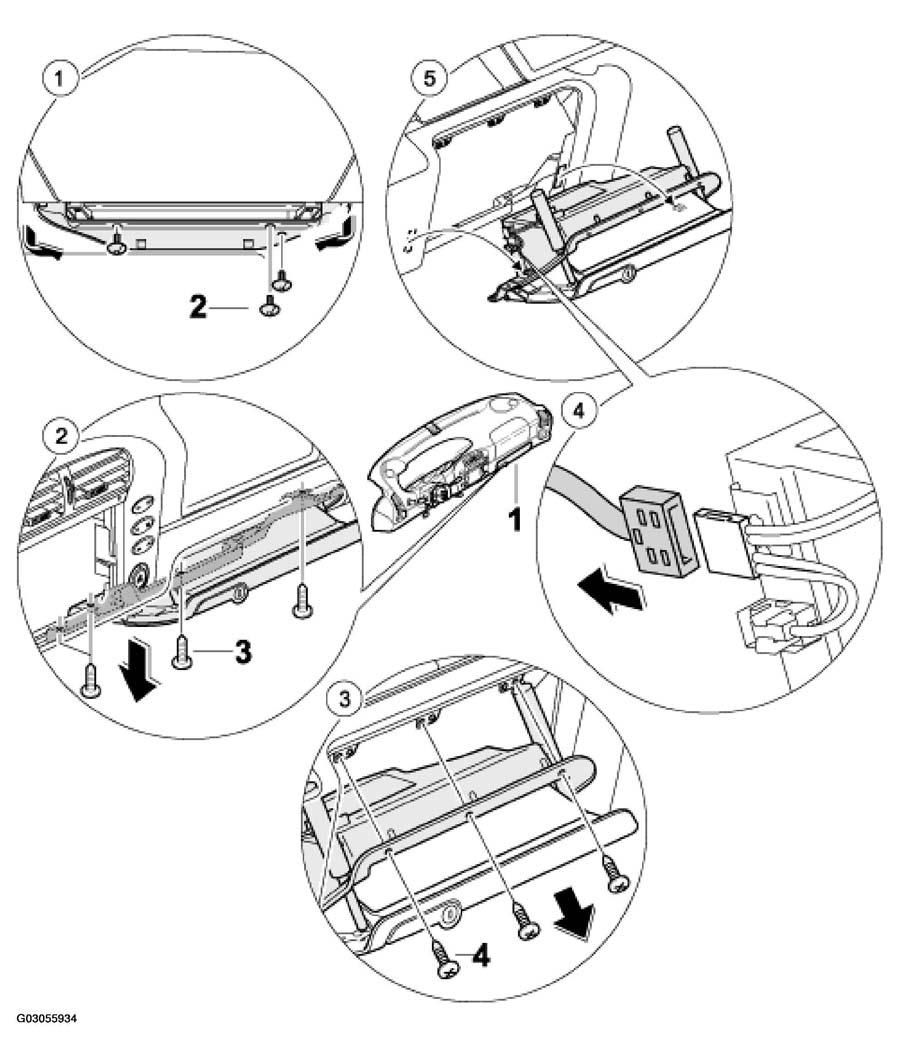

Fig 1: Removing Glove Compartment - As Of MY 2002

Courtesy of PORSCHE OF NORTH AMERICA, INC.

GLOVE COMPARTMENT REMOVAL PROCEDURE - AS OF MY 2002

No.	Procedure	Instructions
1	Unclipping plastic clips	Unclip plastic clips -2-arrows- . See Fig 1 .
2	Unscrewing the rear fastening screws	Unscrew fastening screws -3- . See Fig 1 .
3	Unscrewing the front fastening screws	Unscrew fastening screws -4- . See Fig 1 .
4	Disconnecting the electrical plug connection	Disconnect the electrical plug connection in the -direction of the arrow- . See Fig 1 .
5	Removing the glove compartment	Lift the glove compartment upwards -arrow-1- . See Fig 1 .
