Installing glove compartment

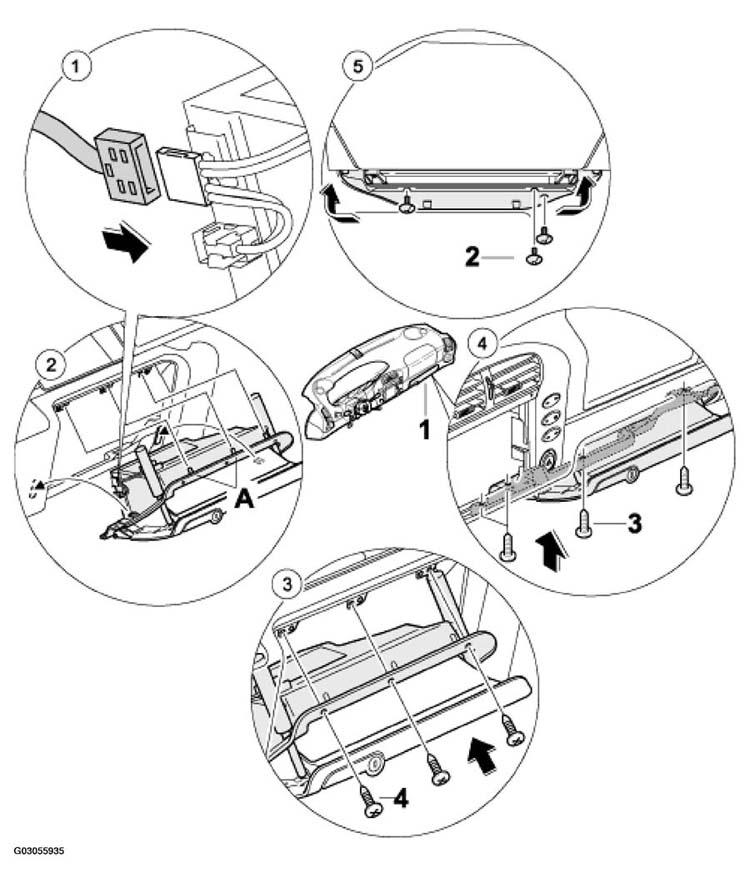

Fig 1: Installing Glove Compartment - As Of MY 2002

Courtesy of PORSCHE OF NORTH AMERICA, INC.

GLOVE COMPARTMENT INSTALLATION PROCEDURE - AS OF MY 2002

No.	Procedure	Instructions
1	Connecting electrical plug connection	Connect the electrical plug connection in the -direction of the arrow- . See Fig 1 .
2	Installing glove compartment	Swivel the glove compartment into the dashboard in the -direction of the arrow-A- . See Fig 1 .
3	Screwing in the front fastening screws	Screw in the fastening screws -4- . See Fig 1 .
4	Screwing in the rear fastening screws	Screw in the fastening screws -3- . See Fig 1 .
5	Fitting the plastic clips	Position the insulation, making sure that the corners are inserted correctly under the dashboard. Press in the plastic clips -2- . See Fig 1 .
