Removing and installing bracket

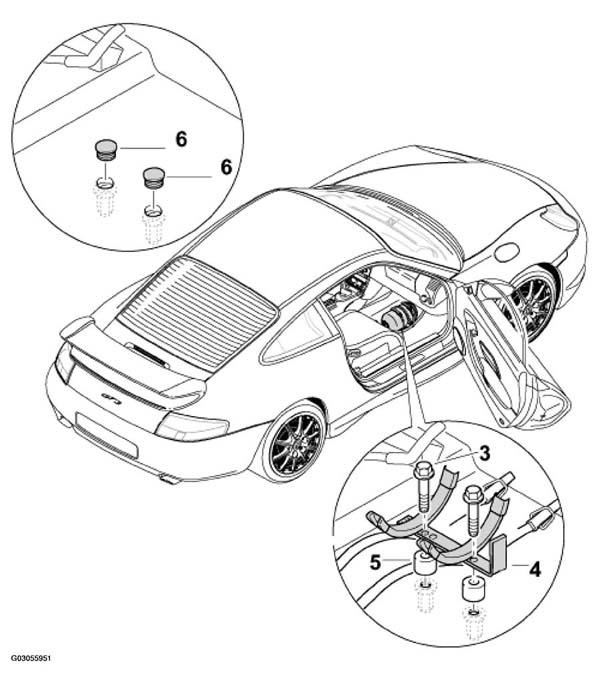

Fig 1: Removing/Installing Fire Extinguisher Bracket

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REMOVAL/INSTALLATION PROCEDURE OF BRACKET

No.	Designation	Qty.	Removal	Installation
3	Fastening screw	2	Unscrew.	Tightening torque: See TIGHTENING TORQUES .
4	Bracket	1
5	Spacer sleeve	2		Position spacer sleeve -5-4-3- . See Fig 1 .
6	Cover caps	2	Pull out.	Press in.
