Removing cup holder

  1. Removing cup holder

    Refer to DISASSEMBLING AND ASSEMBLING THE DASHBOARD, - AS OF MY 1997 .

    Press metal clip -1- -arrow- and hold. Pull the cup holder -2- out of the retaining bracket -3-.

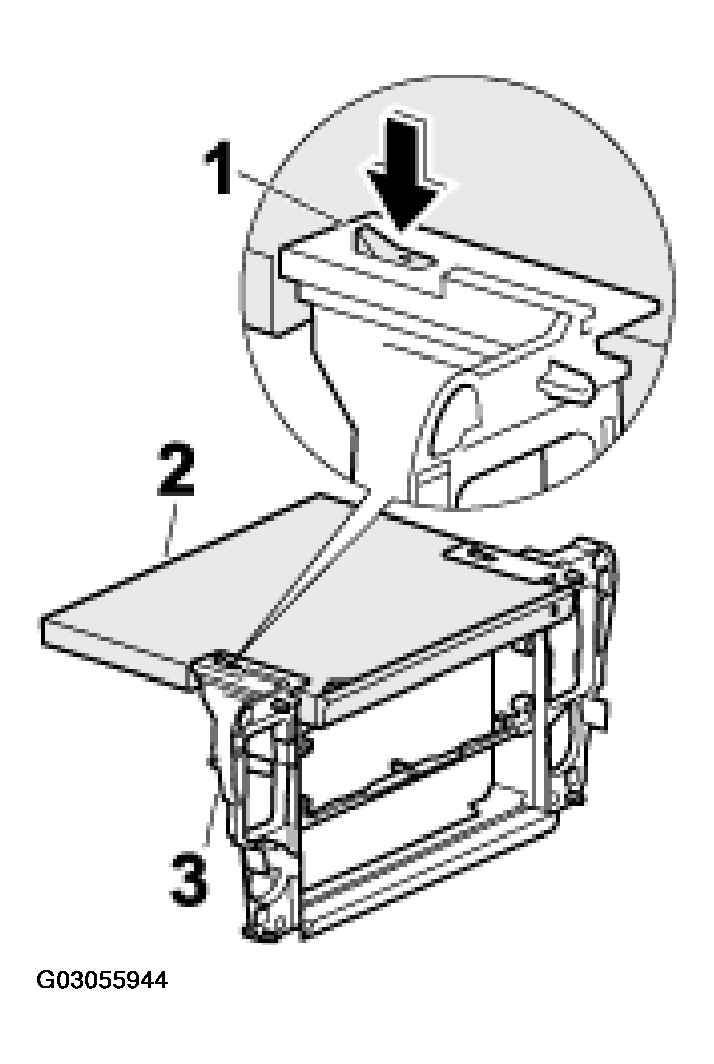

    Fig 1: Pressing Metal Clip & Removing Cup Holder From Bracket - As Of MY 2002
    G03055944Courtesy of PORSCHE OF NORTH AMERICA, INC.
