Installing cup holder

Push cup holder -2- into the shaft of the retaining bracket -3-. Make sure that the metal clip -1- engages.

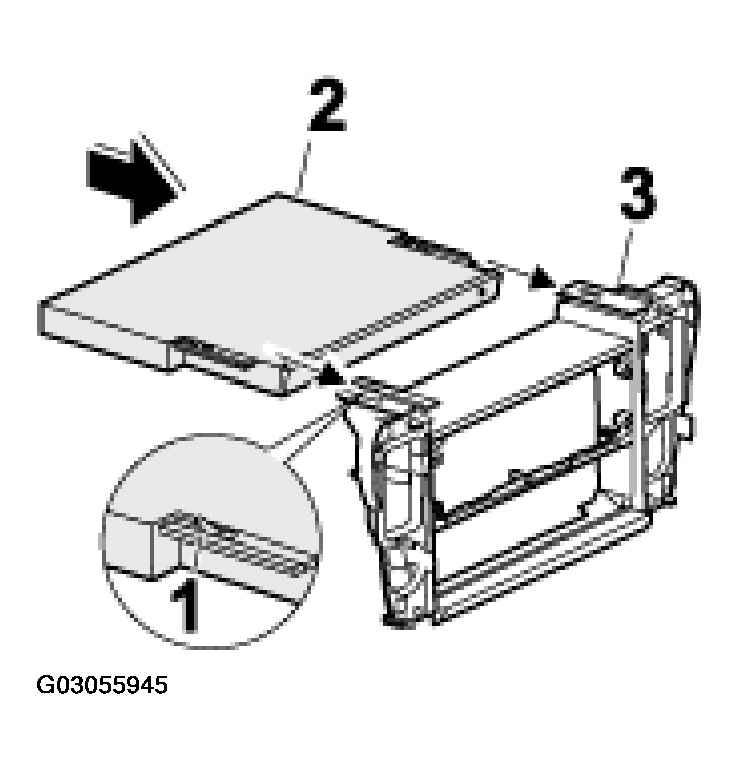

Fig 1: Pushing Cup Holder Into Bracket & Engaging Metal Clip - As Of MY 2002

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Refer to DISASSEMBLING AND ASSEMBLING THE DASHBOARD, - AS OF MY 1997 .
