Disassembling and assembling centre console: Notes

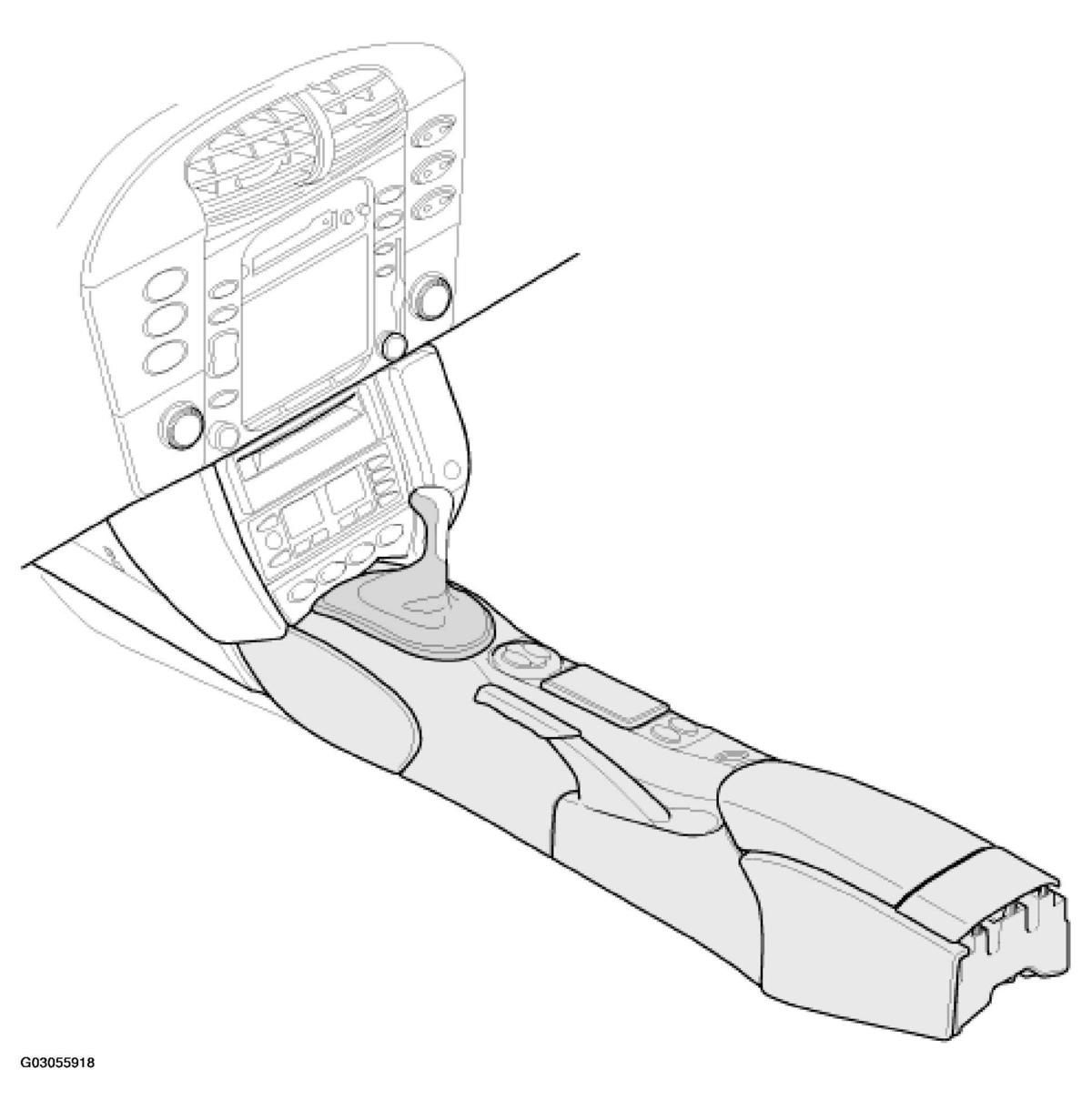

DISASSEMBLING AND ASSEMBLING PROCEDURE OF CENTRE CONSOLE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Cover, front left | 1 | Unclip. | Clip in. |
| 2 | Clip | 28 | Check, replace if necessary | |
| 3 | Cover, centre left | 1 | Unclip. | Clip in. |
| 4 | Fastening screws | 3 | ||
| 5 | Lock support | 1 | ||

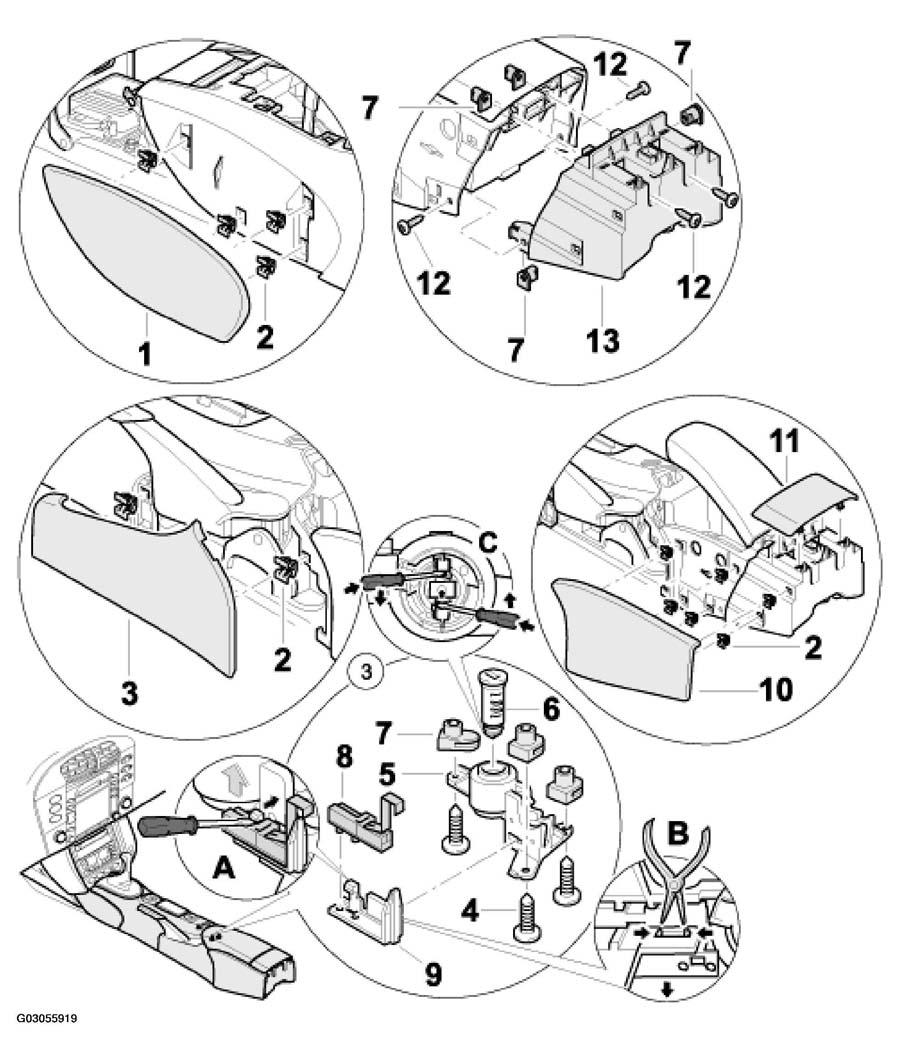

| 6 | Lock barrel | 1 | Press in the locking tabs in -inset C-6-5- . See Fig 2 . | Press the lock barrel -6-5- . See Fig 2 . |
| 7 | Plastic nut | 7 | ||
| 8 | Micro switch | 1 | From the bracket -9-inset A- . See Fig 2 . | Clip into the bracket -9- . See Fig 2 . |
| 9 | Bracket | 1 | Press the locking tabs of the bracket -9-inset B-5- . See Fig 2 . | Position bracket -9-5- . See Fig 2 . |
| 10 | Cover, rear left | 1 | Unclip. | Clip in. |
| 11 | Cover, rear top | 1 | Unclip. | Clip in. |
| 12 | Fastening screws | 4 | ||
| 13 | Extension bracket | 1 | Unscrew fastening screws -12-13- . See Fig 2 . | Position the extension bracket -13-12- . See Fig 2 . |
