Removing roof joint strip
ROOF JOINT STRIP REMOVAL PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

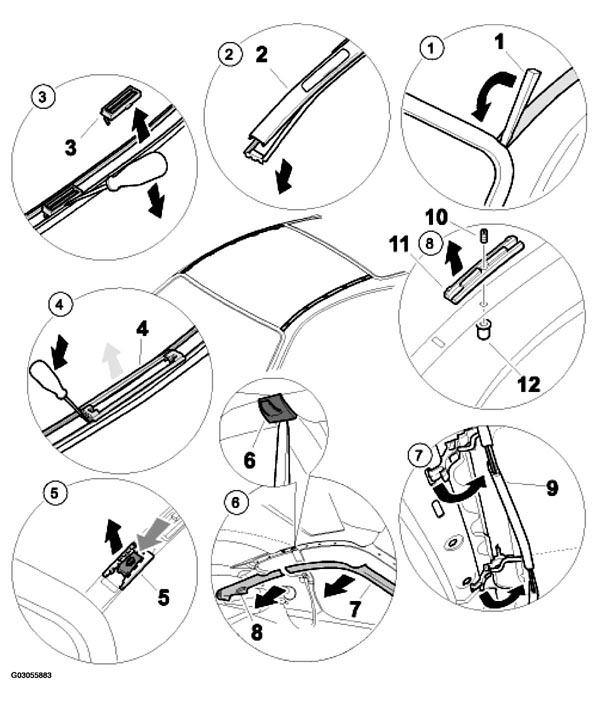

| 1 | Unclipping roof joint strip | Lift at both ends using a plastic spatula -1- . See Fig 1 . |
| 2 | Pulling off roof joint seal | Pull the roof joint seal out of the groove of the roof joint strip -2- . See Fig 1 . |
| 3 | Unclipping roof joint clips | On the outside of the roof joint clip -3- . See Fig 1 . |
| 4 | Unclipping fold-out element | Insert a screwdriver beneath both ends of the fold-out element -4- . See Fig 1 . |
| 5 | Detaching spreader | Insert a plastic spatula into the wedge piece of the spreader -5- . See Fig 1 . |
| 6 | Removing interior trim parts | Lift up the clothes hook bracket -6-7-8- . See Fig 1 . |
| 7 | Detaching the roof liner | Unclip the metal strut -9- . See Fig 1 . |
| 8 | Detaching base plate of Roof Transport System. | Release stud -10-12-11- . See Fig 1 . |
