Installing roof joint strip
ROOF JOINT STRIP INSTALLATION PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|

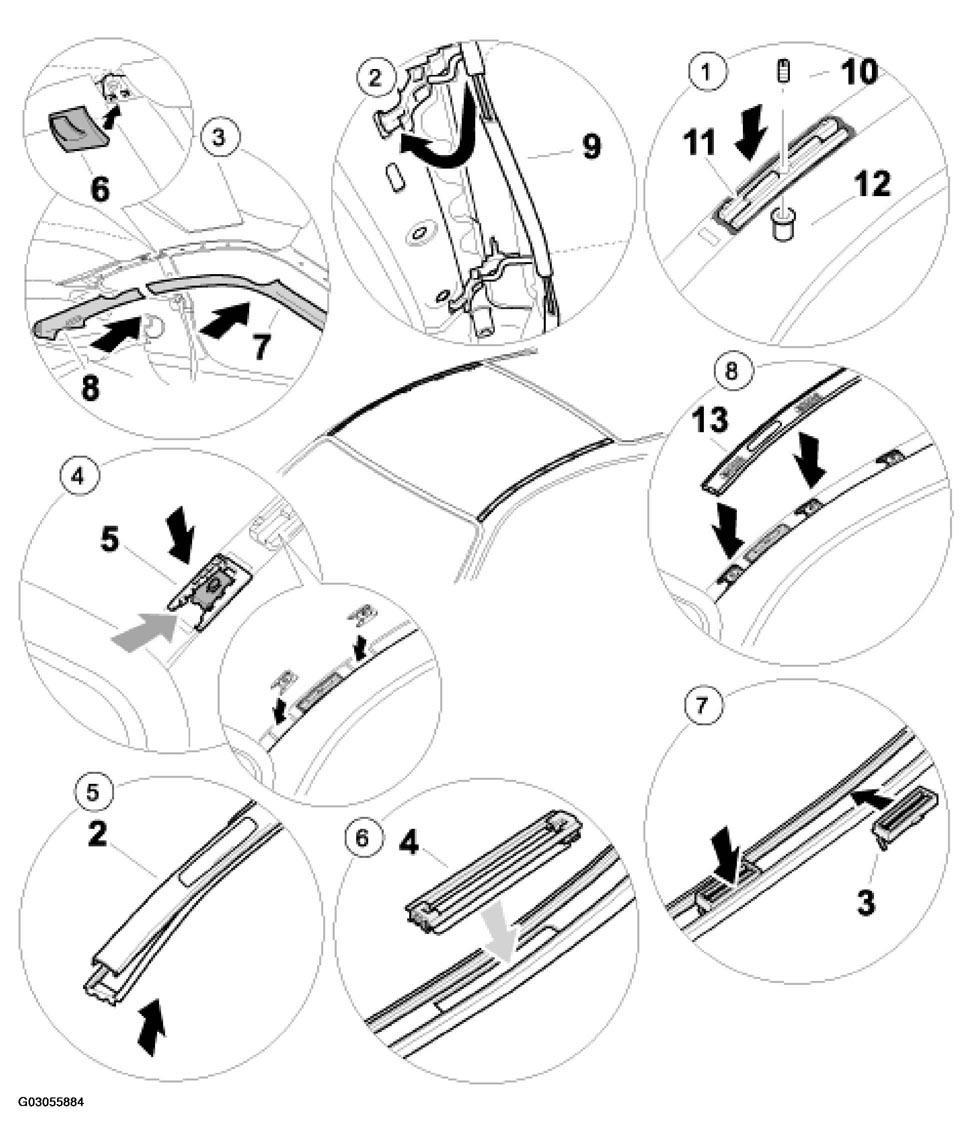

| 1 | Fitting base plate of Roof Transport System | The contact surface of the base plate -11-10-12- . See Fig 1 . |
| 2 | Attaching roof liner | Push the metal strut -9- . See Fig 1 . |
| 3 | Fitting interior trim parts | Position and clip in A-pillar trim -7-8-6- . See Fig 1 . |
| 4 | Fitting spreaders | Position spreaders -5- . See Fig 1 . |
| 5 | Fitting roof joint seal | Push the roof joint seal onto the roof joint strip -2- . See Fig 1 . |
| 6 | Clip in fold-out elements | Position the fold-out element -4- . See Fig 1 . |
| 7 | Clipping in roof joint clips | Insert the roof joint clips -3- . See Fig 1 . |
| 8 | Fitting roof joint strip | Position the roof joint strip -13- . See Fig 1 . |
