Replacing sheetmetal bracket for roof joint strip

CAUTION: Water leak in roof rail flange!

During repairs (replacing sheetmetal bracket for roof joint strip), the sheetmetal bracket must be stuck.
Spot welding or gas-shielded arc welding are not permissible.

CAUTION: Observe the working time of the adhesive! The new part must be stuck in within 30 minutes. Otherwise the adhesion of the adhesive is impaired.

Measuring sheetmetal bracket

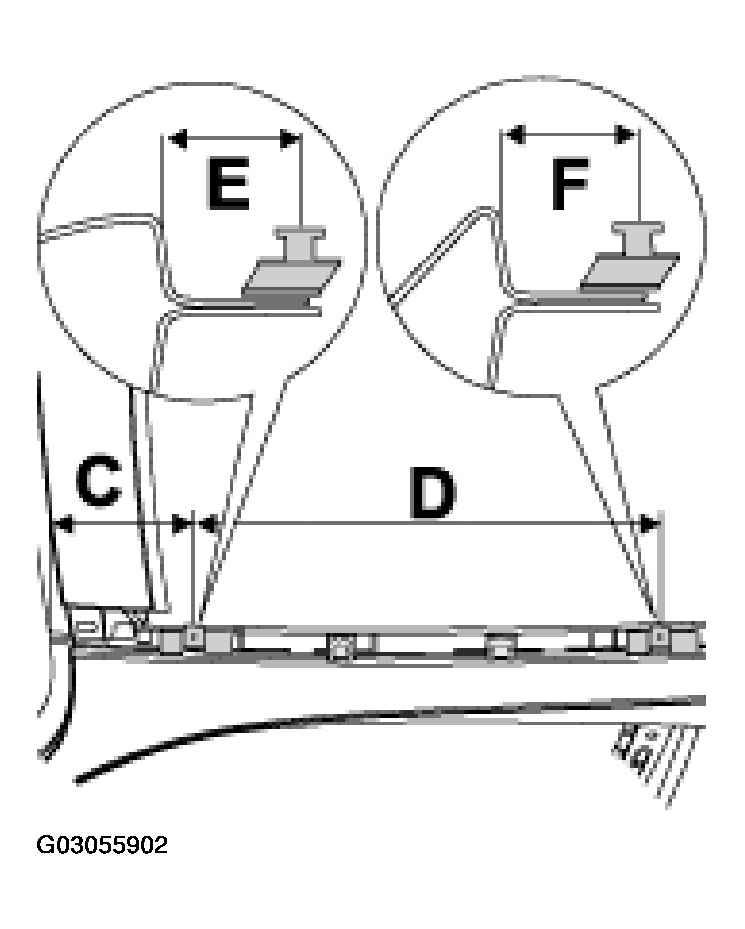

Fig 1: Measuring Sheetmetal Bracket Clearance - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Measure clearance starting at position -C- at corner of windscreen frame. See Fig 1 .
Apply adhesive (Teromix-6700) to the sheetmetal flange and position. See TOOLS AND MATERIALS .
- C = 143 mm. See Fig 1 .
- D = 624 mm. See Fig 1 .
- E = 15 mm. See Fig 1 .
- F = 15.3 mm. See Fig 1 .
Prime flange areas with 2K primer.
Apply top coat paint.

The adhesive has hardened after a period of 2 hours to the extent that the roof joint strip can be mounted.
