Installing roof joint strip

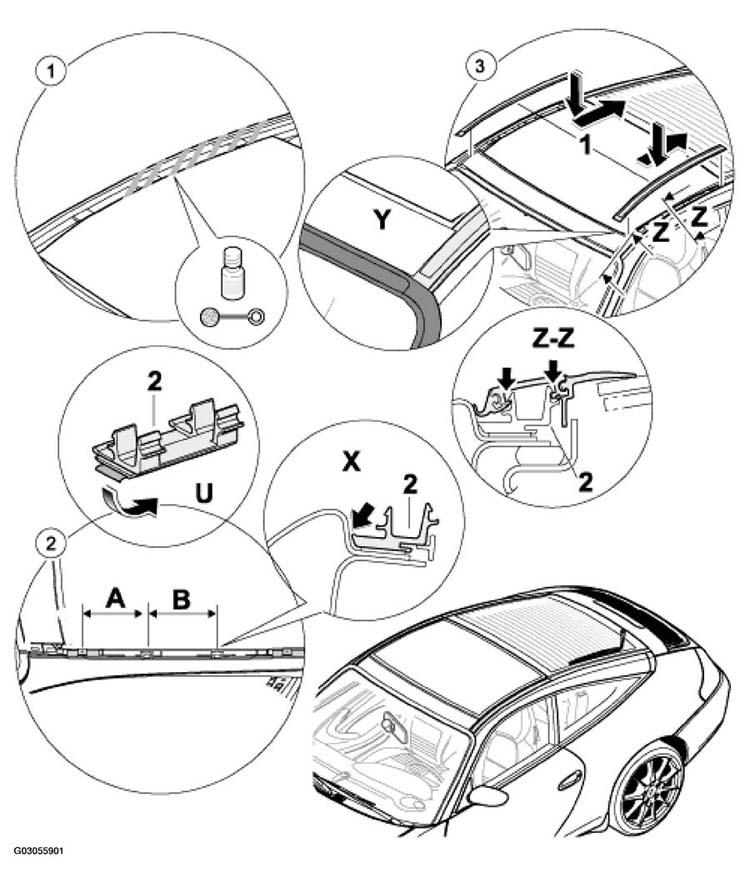

Fig 1: Installing Roof Joint Strip - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ROOF JOINT STRIP INSTALLATION PROCEDURE - TARGA

No.	Procedure	Instructions
1	Cleaning the roof rail	Clean the roof rail. See TOOLS AND MATERIALS .
2	Affixing the clips	Pull protective film off the clips -2-inset U-arrow in inset X- . See Fig 1 . A = 208 mm B = 208 mm
3	Installing roof joint strip	Position roof joint strip -1-direction of arrow-inset Y-1-2-2-arrows in Section Z-Z- . See Fig 1 .
