Removing roof joint strip (C-pillar cover)

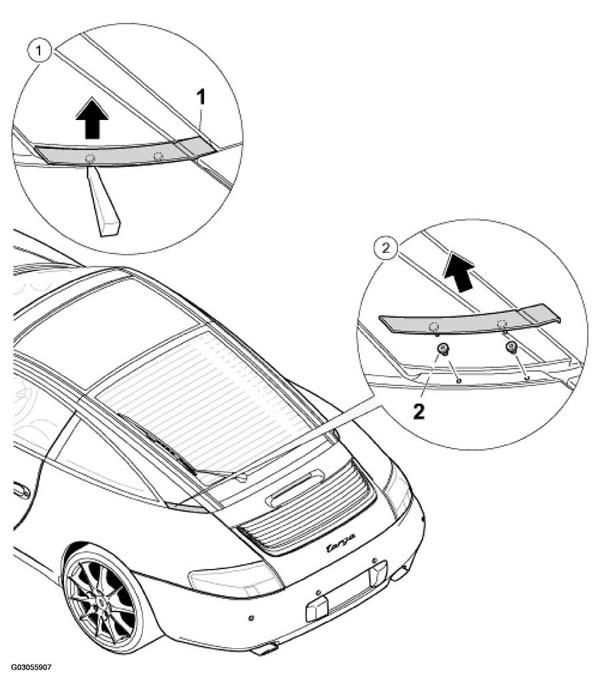

Fig 1: Removing Roof Joint Strip (C-Pillar Cover) - Targa
G03055907Courtesy of PORSCHE OF NORTH AMERICA, INC.
ROOF JOINT STRIP (C-PILLAR COVER) REMOVAL PROCEDURE - TARGA

No. Procedure Instructions
1 Removing roof joint strip Insert a plastic spatula under the roof joint strip -1-  . See Fig 1 .
2 Removing clamping sleeves Clamping sleeves -2-1-  . See Fig 1 .
