Removing and installing lower part of lid lock

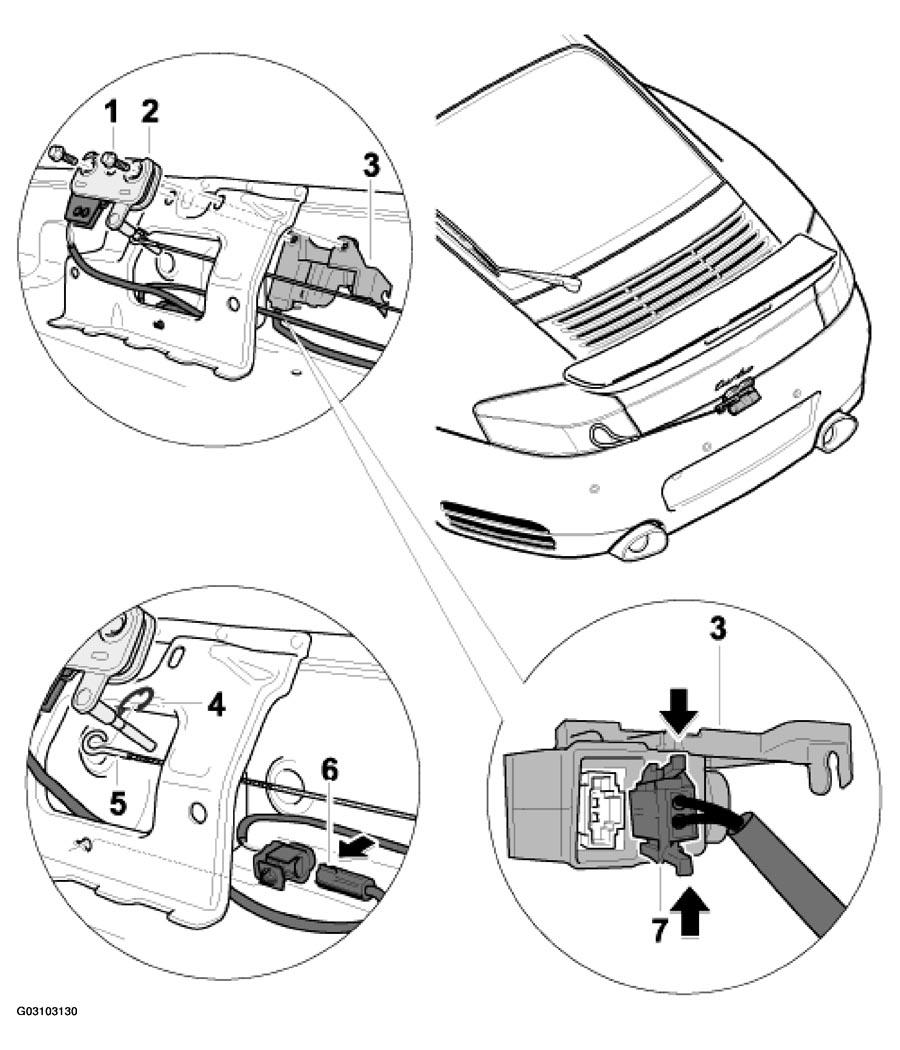

LOWER PART OF LID LOCK REMOVAL AND INSTALLATION PROCEDURE CHART AT REAR
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Fastening screw | 2 | Undo fastening screws-1- | Tightening torque: -10 Nm (7.5 ftlb.)- |
| 2 | Lower part of lid lock | 1 | Undo fastening screws -1-3- | |
| 3 | Servo motor unit | 1 | ||
| 4 | Retaining clip | 1 | Press out. | Press in. |
| 5 | Emergency release cable | 1 | ||
| 6 | Electrical plug connection | 1 | Interior lighting plug connection. Press lug -arrow- | |
| 7 | Electrical plug connection | 1 | Servo motor unit electrical plug connection. Press lugs -arrow- -7- | Connect coded plug -7- |
