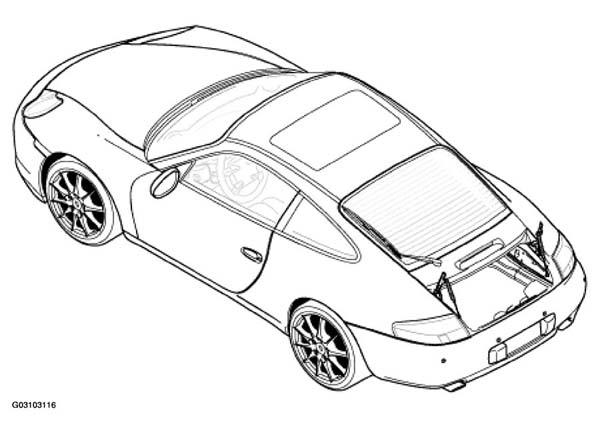

Removing and installing lid hinge
NOTE:
- The cable sleeve -1- has been omitted as of model year 2002.

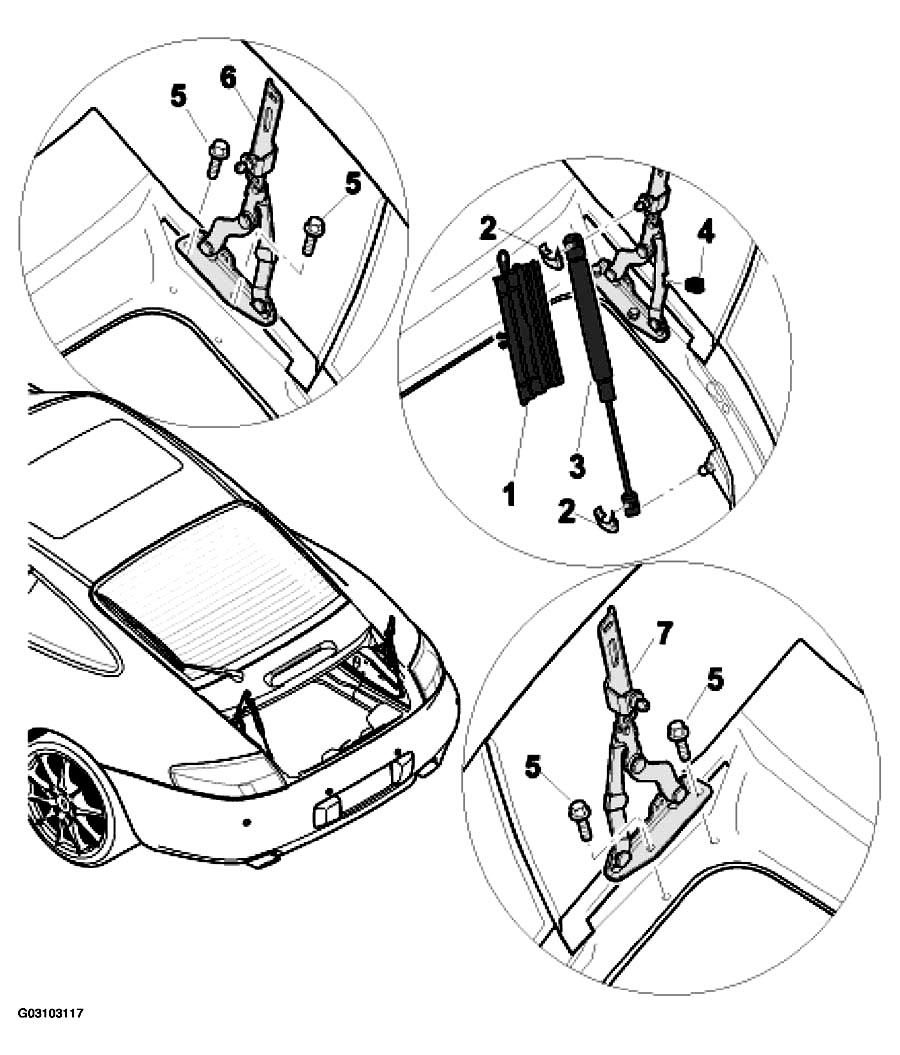

LID HINGE REMOVAL AND INSTALLATION PROCEDURE CHART
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Pneumatic spring -1- cable sleeve-1- | 1 | Press in lugs at the sides. | Press together until the lugs engage at the sides. |
| 2 | Fuse -2- | 4 | Press out with a narrow screwdriver. | Press in. |
| 3 | Pneumatic spring -3- | 2 | ||
| 4 | Stop clip -4- | 2 | ||
| 5 | Combination screw -5- | 4 | Tightening torque: -10 Nm- | |
| 6 | Lid hinge, right -6- | 1 | Undo combination screws -5- | Adjust to the right side section in accordance with lid contour. |
| 7 | Lid hinge, left -7- | 1 | Undo combination screws -5- | Adjust to the left side section in accordance with lid contour. |
