Removing and installing bowden cable for lock actuation

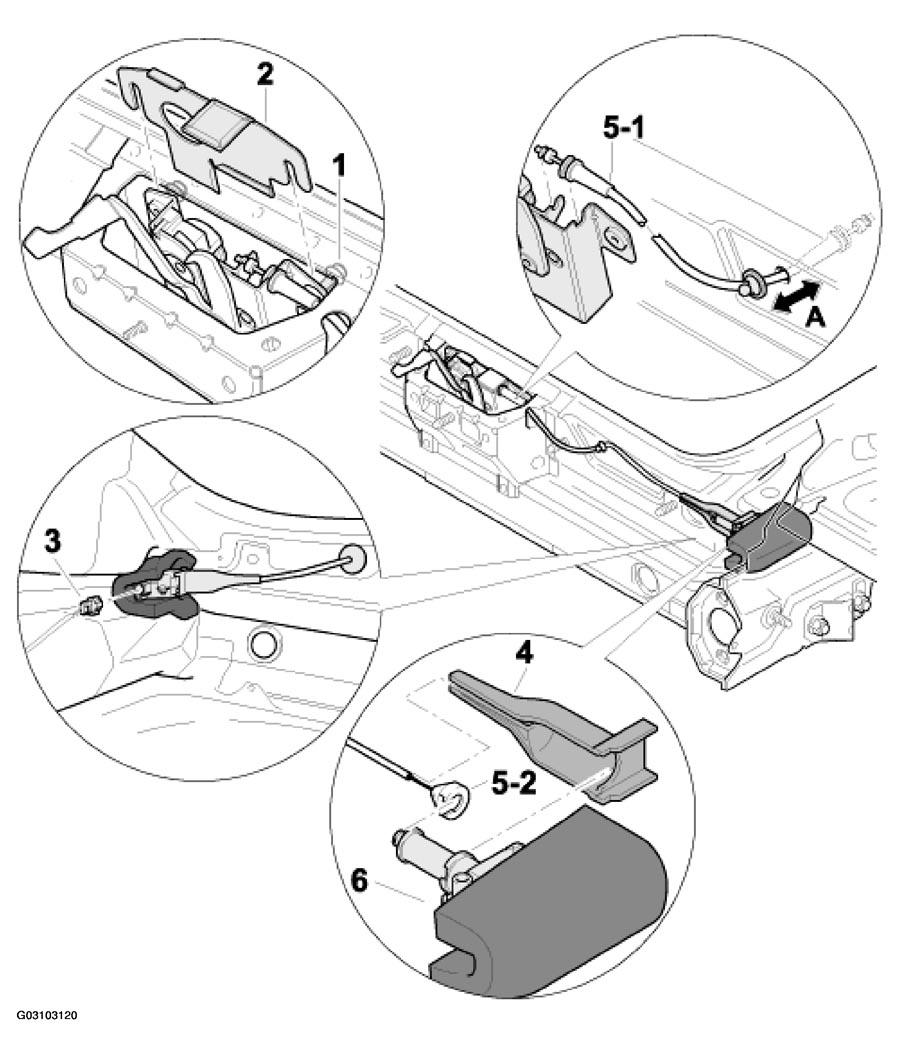

BOWDEN CABLE FOR LOCK ACTUATION REMOVAL AND INSTALLATION PROCEDURE CHART
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Hexagon-head bolt | 2 | Back off by 2 turns. | Tightening torque: -10 Nm (7.5 ftlb.)- |
| 2 | Cover panel | 1 | Lift out of the lower part of the lid lock. | Position on lower part of lid lock. |
| 3 | Electrical plug connection | 1 | Disconnect. | Connect. |
| 4 | Guide for bowden cable | 1 | Pull off. | Push on. |
| 5-1 | Bowden cable | 1 | Disengage nipple of bowden cable -5-1--arrow A- | Pull the rubber sleeve -arrow A-,-5,-1- |
| 5-2 | -arrow A-,-5,-1- | |||
| 6 | Servo motor for hood release | 1 | Extend bowden cable -5-2- | Insert bowden cable -5,-2- |
