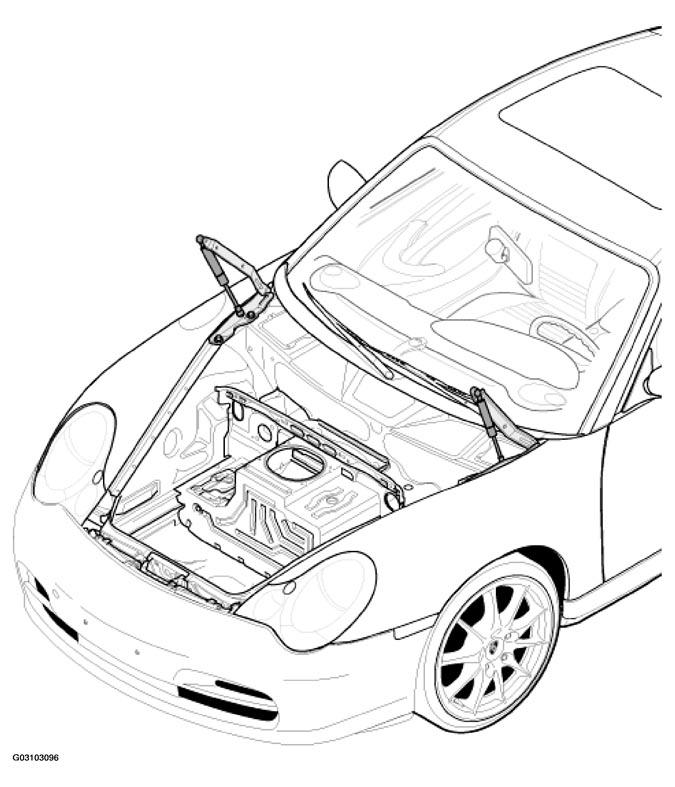

Removing and installing front lid hinge: Notes
Courtesy of PORSCHE OF NORTH AMERICA, INC.

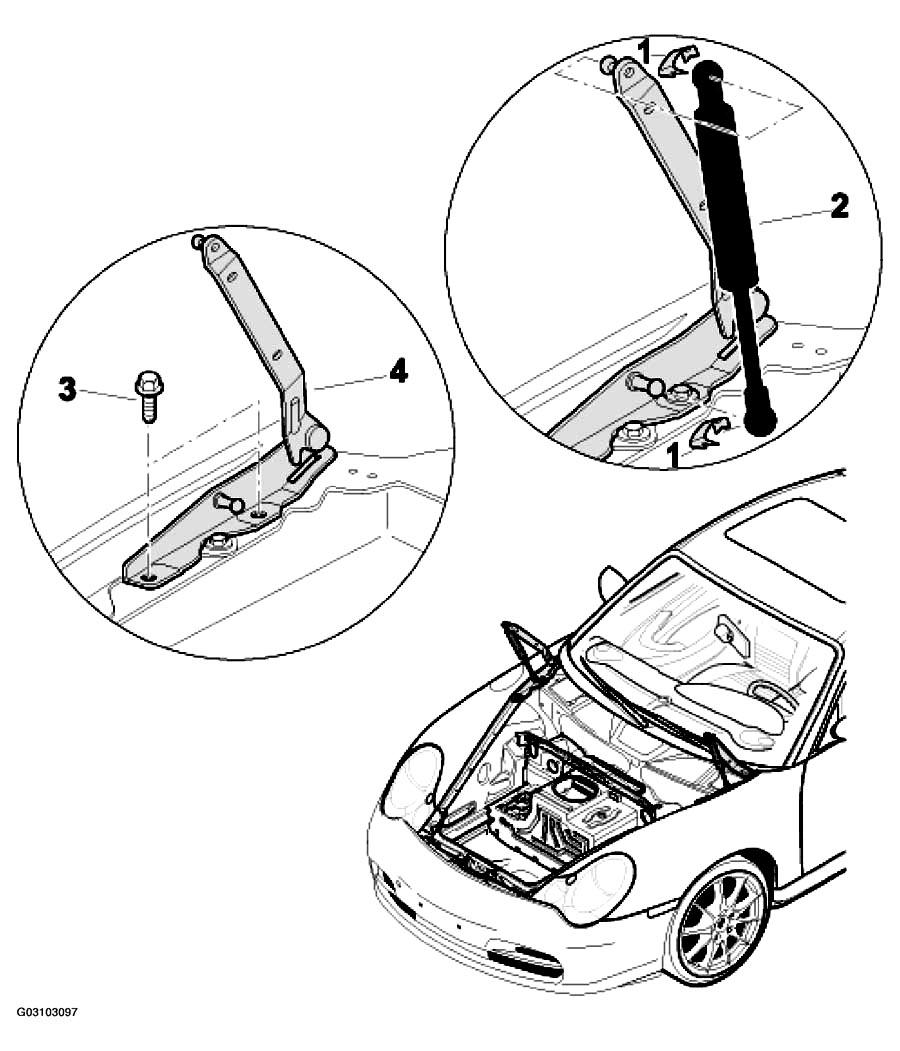

Courtesy of PORSCHE OF NORTH AMERICA, INC. FRONT LID HINGE REMOVAL AND INSTALLATION PROCEDURE CHART
| No. |
Designation |
Qty. |
Removal |
Installation |
| 1 |
Clip |
4 |
Press out with a narrow screwdriver. |
Press in. |
| 2 |
Pneumatic spring |
4 |
|
|
| 3 |
Combination screw M6x14 |
4 |
Undo fastening screws -3-4- |
Position hinge -4-3-10 Nm (7.5 ftlb.)- |
| 4 |
Hinge |
1 |
|
|
