Removing and installing filler flap: Notes

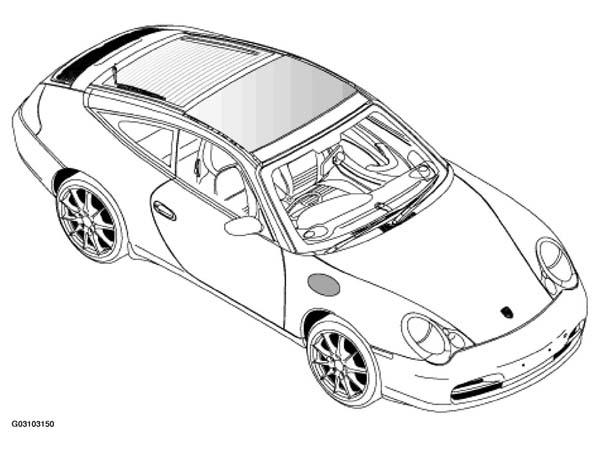

Fig 1: Locating Filler Flap

Courtesy of PORSCHE OF NORTH AMERICA, INC.

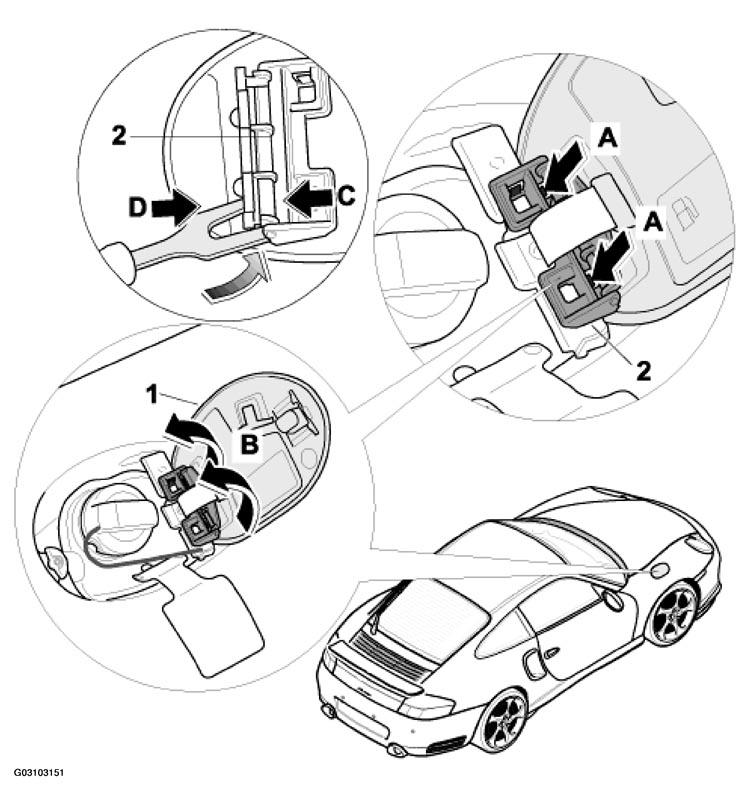

Fig 2: Removing And Installing Filler Flap

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FILLER FLAP REMOVAL AND INSTALLATION PROCEDURE CHART

No.	Designation	Qty.	Removal	Installation
1	Filler flap	1	Insert a narrow screwdriver from above in front of the clip -arrow A-direction of arrow B--1-	Position the filler flap -1-
2	Plastic hinge	1	Insert the removal tool at the locking lugs on the left and right -2--direction of arrow C-,-1-	Position the plastic hinge -2,-1-direction of arrow D-
			-2--direction of arrow C--1-
			-2--direction of arrow C--1-
			and lift via the locking lugs, remove the plastic hinge -2-direction of arrow C-,-1-
