Assembling release for front cover

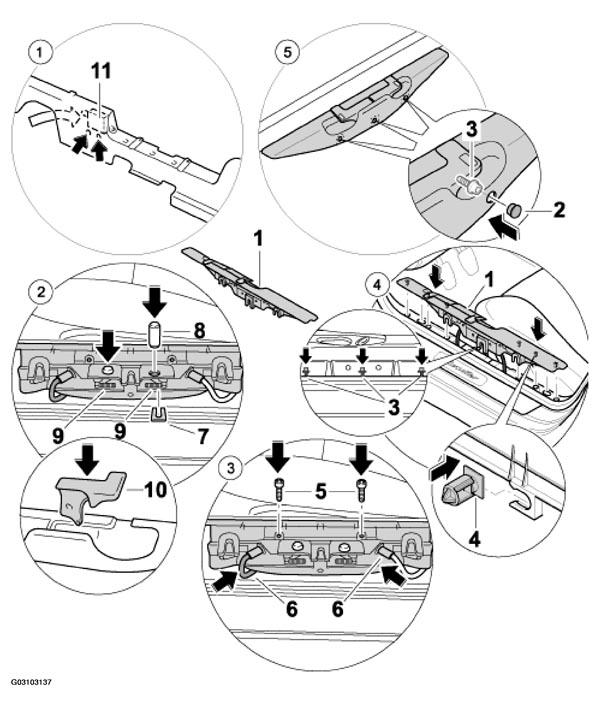

Fig 1: Assembling Release For Front Cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT COVER RELEASE ASSEMBLING PROCEDURE CHART

No.	Procedure	Instructions
1	Installing actuating element -11-	Insert the electrical plug connection from the actuating element. Position the actuating element -11-
2	Installing actuating levers -10-	Position the actuating lever -10-,-1,-9,-8-,-10-,-7-
3	Installing Bowden cables -6-	Insert the Bowden cable -6-,-1-,-6,-5-
4	In stalling sill -1-	Clip in new fastening clips -4,-1-
5	Screwing down sill -1-	Screw down the fastening screws -3,-2-
