Removing and installing support for cap release
NOTE:
- In order to remove the support for the cap release, the front seat must be removed. Refer to REMOVING AND INSTALLING FRONT SEAT, - AS OF MY 1996 .

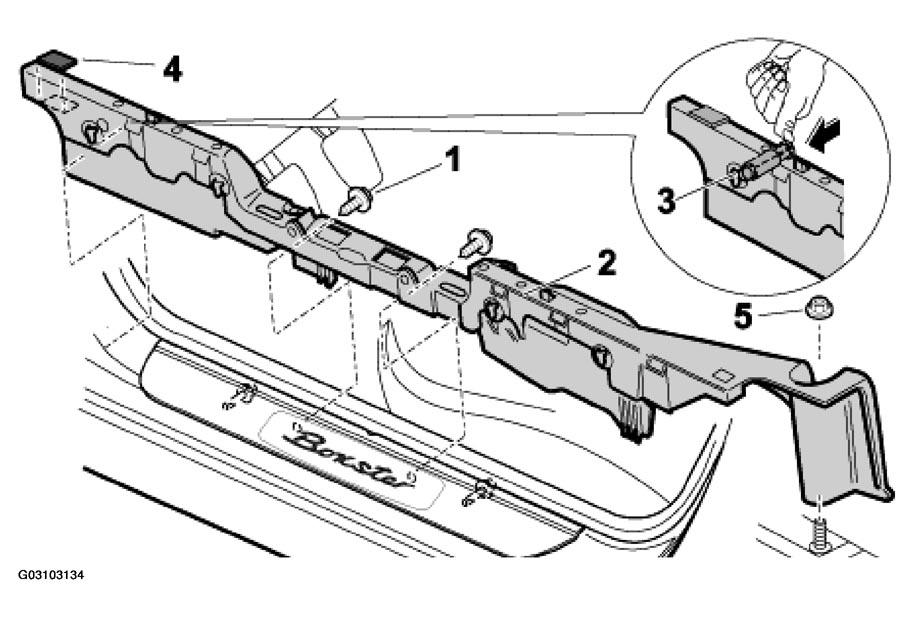

CAP RELEASE SUPPORT REMOVAL AND INSTALLATION PROCEDURE CHART
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Fastening screw | 2 | Unscrew. | Screw in. |
| 2 | Support for cap release | 1 | Pre assembled dowel pin -3-,-2- | |
| 3 | Locating pin | 1 | Pull out the pin. | Press in the pin. |
| 4 | Felt support | 1 | Pull off. | Check, replace if necessary. |
| 5 | Plastic nut | 1 |
