Disassembling release for front cover

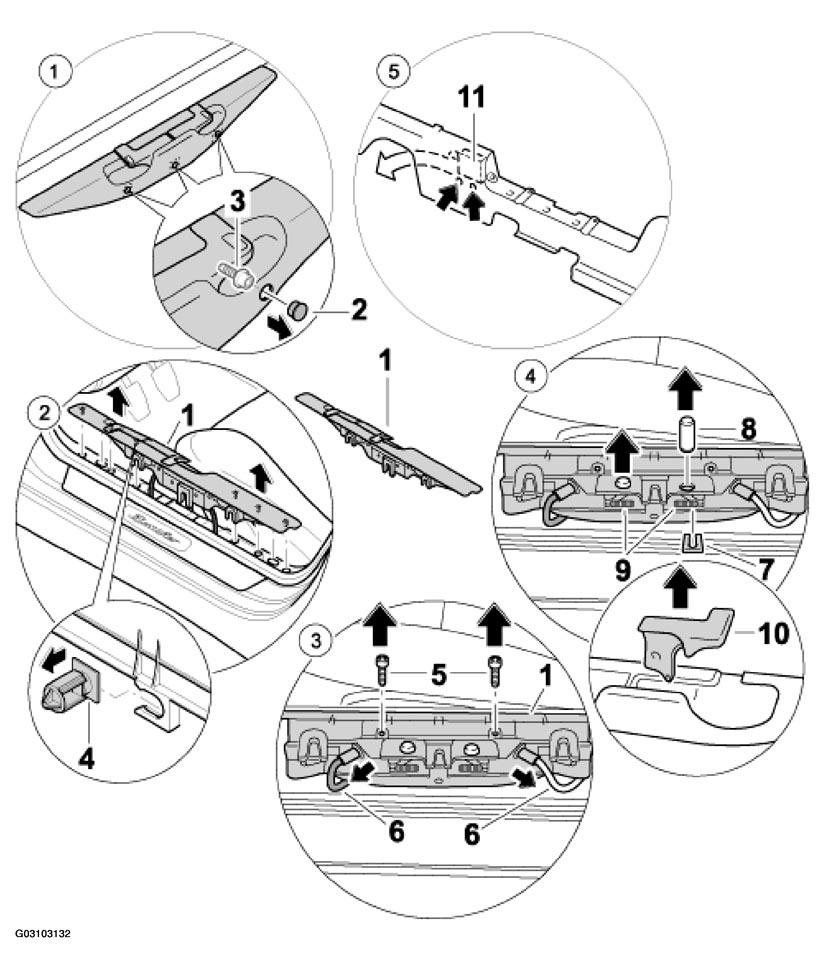

Fig 1: Disassembling Release For Front Cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT COVER RELEASE DISASSEMBLING PROCEDURE CHART

No.	Procedure	Instructions
1	Unscrewing hexagon socket head bolts -3-	Remove plastic plugs -2-, -3, -1
2	Removing sill -1-	Lift sill-1--4-
3	Removing Bowden cables -6-	Unscrew fastening screws -5-,-6-,-1-
4	Removing actuating levers -10-	Press retainer SLB 6 -7-,-8-,-10-,-1-,-10-,-1-
5	Removing actuating element-11-	Unscrew fastening screws from the actuating element -8-
