Disassembling release for front lid

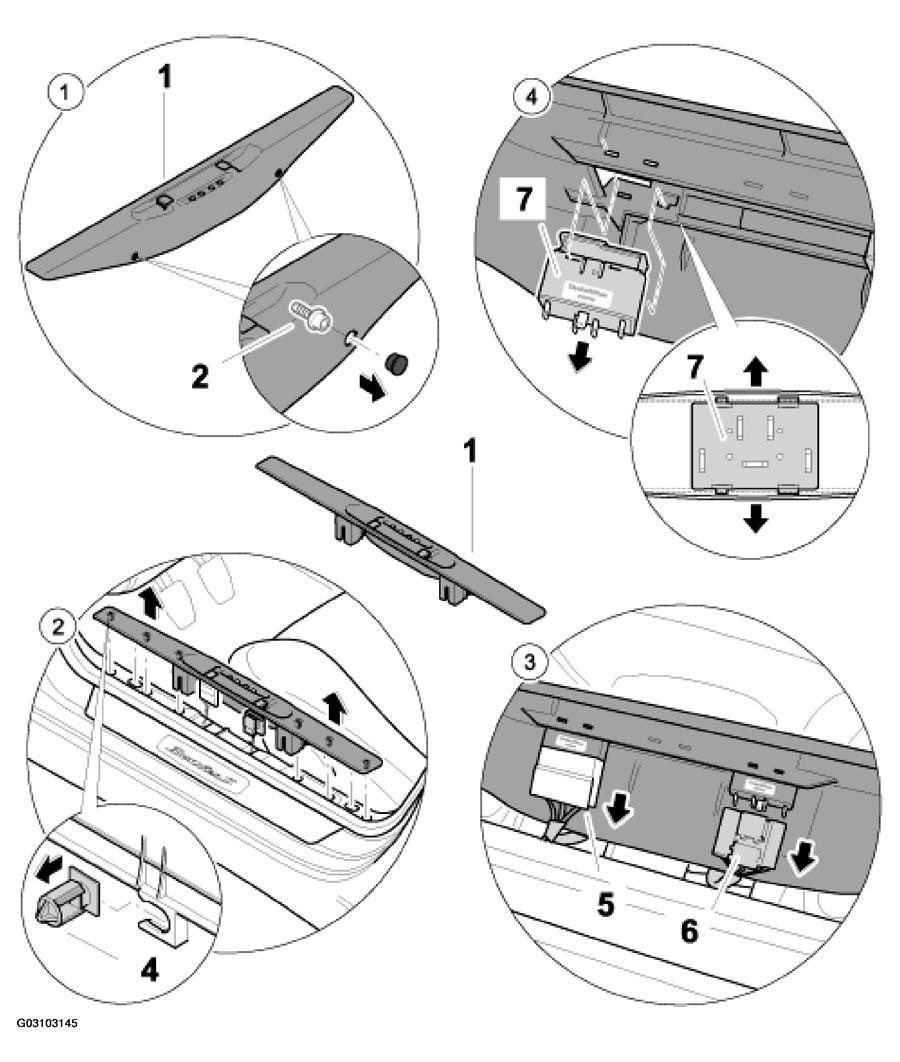

Fig 1: Disassembling Release For Front Lid
G03103145Courtesy of PORSCHE OF NORTH AMERICA, INC.
FRONT LID RELEASE DISASSEMBLING PROCEDURE CHART

No.  Procedure  Instructions
1 Undoing hexagon socket head bolts -2-  Remove plastic plugs -3-,-2-
2 Removing sill -1-  Lift sill-1,-4-
3 Pulling off plug connections -5, 6  - Pull off plug connections -5, 6-
4 Removing actuating switches for front lid -7, 8-  Press the fastening ribs of the sill -arrows-,-7-


Fig 1: Disassembling Release For Front Lid
G03103148Courtesy of PORSCHE OF NORTH AMERICA, INC.
FRONT LID RELEASE DISASSEMBLING PROCEDURE CHART

No.  Procedure  Instructions
1 Undoing hexagon socket head bolts -2-  Remove plastic plugs -3-,-2-
2 Removing sill -1-  Lit sill -1,-4-
3 Pulling off plug connections -5, 6-  Pull off plug connections -5, 6-
4 Removing actuating switches for front lid -7, 8-  Press the fastening ribs of the sill -arrows-,7-
