Assembling release for front lid

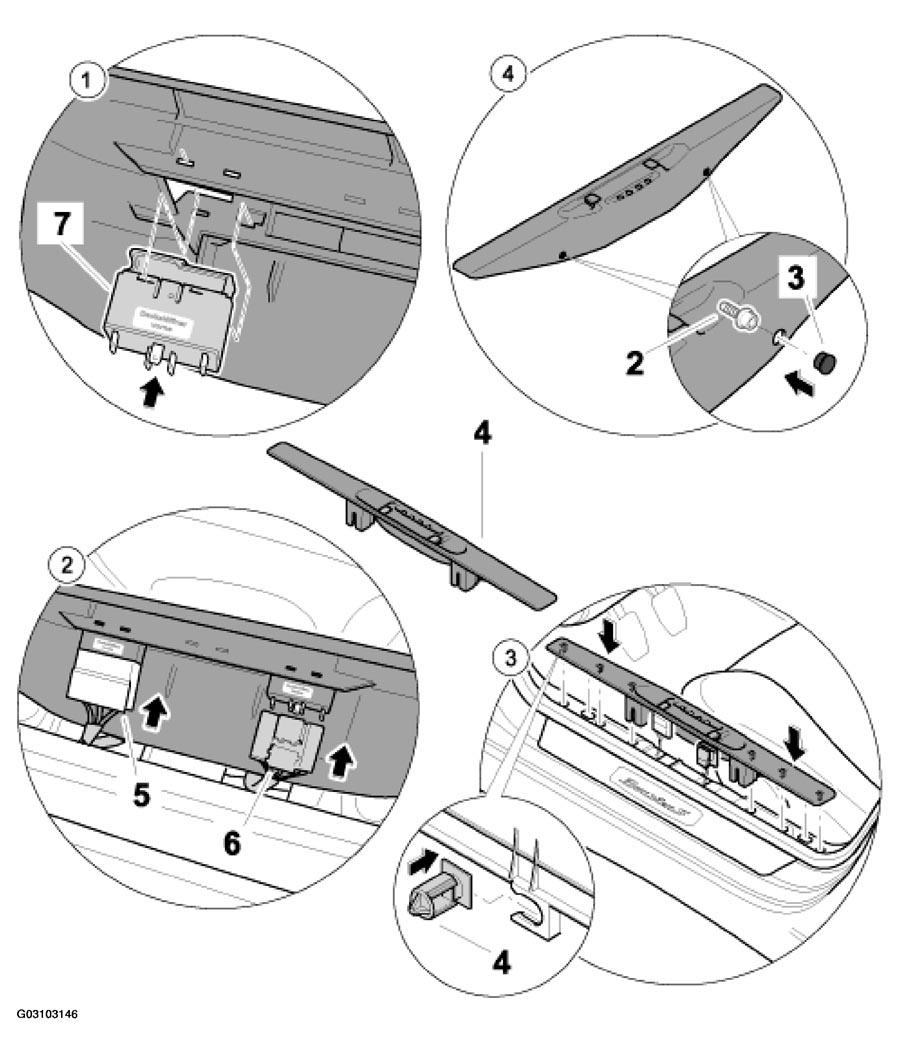

Fig 1: Assembling Release For Front Lid
G03103146Courtesy of PORSCHE OF NORTH AMERICA, INC.
FRONT LID RELEASE DISASSEMBLING PROCEDURE CHART

No.  Procedure  Instructions
1 Installing actuating switch of front lid -7- Clip locking tabs of the actuating switch for the front lid -7-
2 Joining plug connections -5, 6-  Push plug connections -5, 6-
3 Attaching sill -1-  Clip in new fastening clips -4-,-1-
4 Tightening hexagon socket head bolts -2- Screw in hexagon socket head bolts -2,-3-
