Replacing model logo

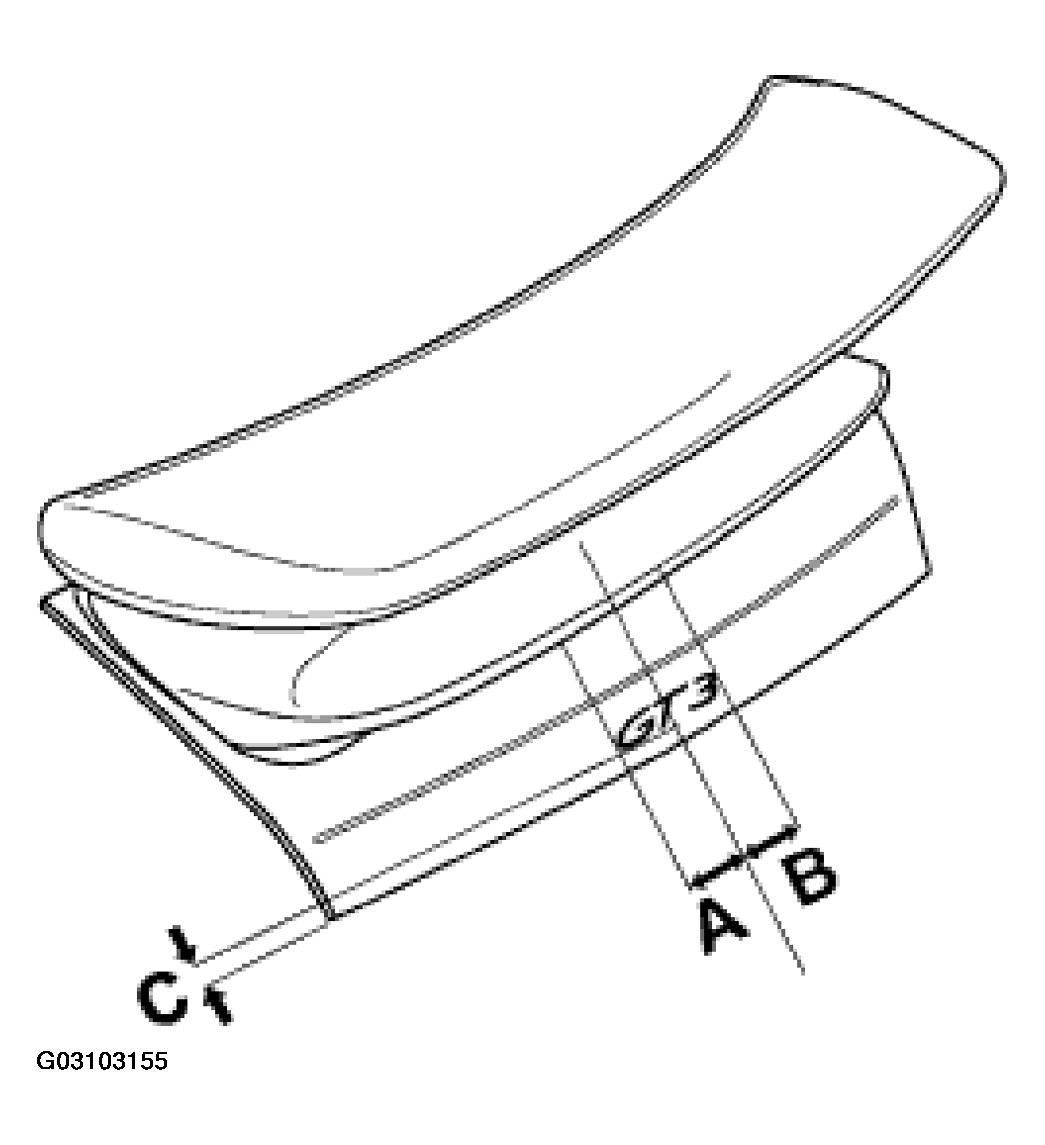

Fig 1: Identifying Model Logo Dimensions
G03103155Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Find the middle of the cover.
  2. Position the -GT3-  logo with the dimensions -A and B = 78.2 mm- and -C = 28 +/- 1 mm-  on the rear cover and affix.
