Disassembling rear cover

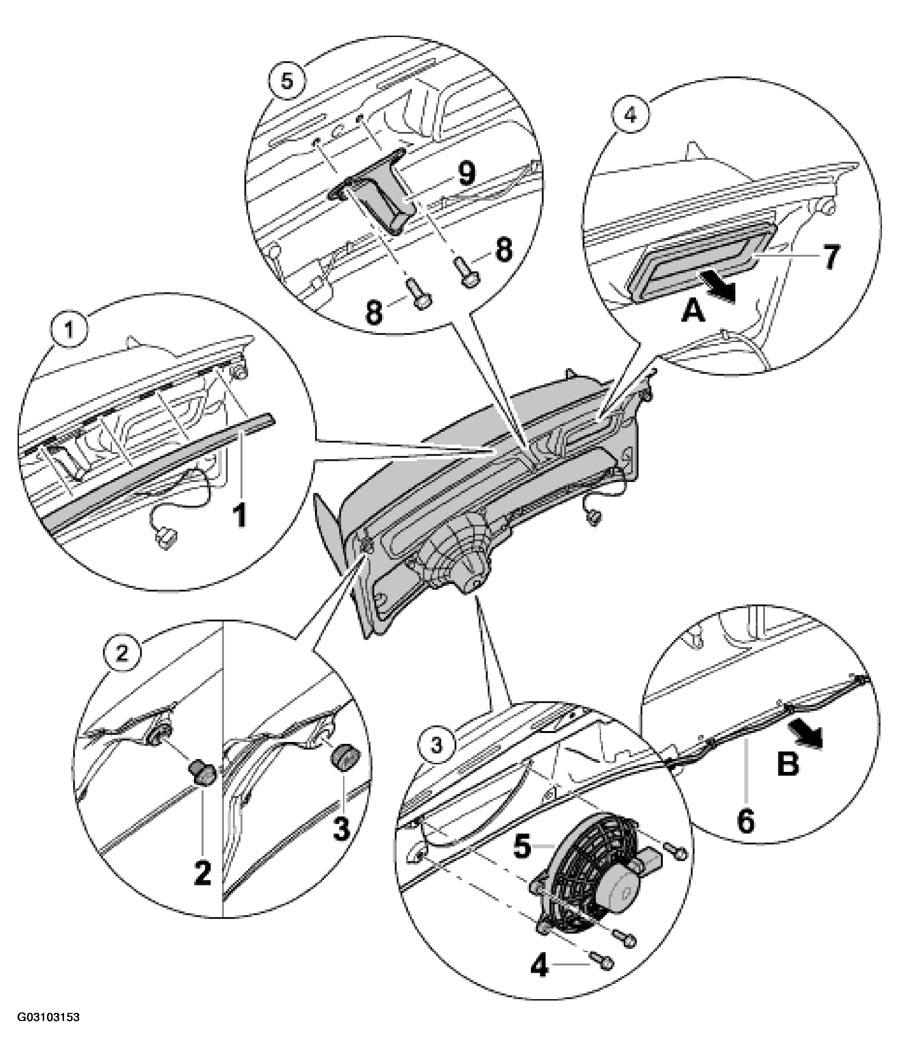

Fig 1: Disassembling Rear Cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REAR COVER DISASSEMBLING PROCEDURE CHART

No.	Procedure	Instructions
	Remove rear spoiler
	Remove rear lid	Refer to REMOVING AND INSTALLING REAR COVER
1	Remove rubber covering	Pull off rubber covering -1-
2	Remove adjusting element	Unscrew rubber pad -2, -3-
3	Remove fan with fan housing	Unclip wiring harness -6- on the cover -arrow B- Unscrew fastening screws-4- and remove fan with fan housing -5-.
4	Remove air guide	Pull out air guide -7-, -arrow A-
5	Remove upper part of lock	Unscrew fastening screws -8-, -9, -1
