Assembling rear cover

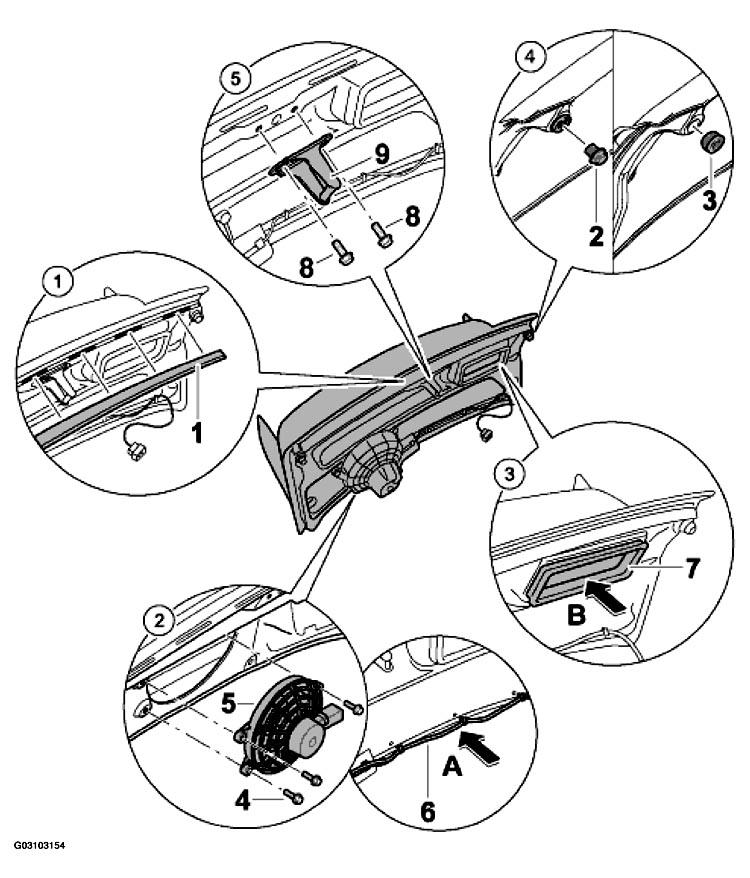

Fig 1: Assembling Rear Cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REAR COVER ASSEMBLING PROCEDURE CHART

No.	Procedure	Instructions
1	Affix rubber covering	Press rubber cover -1-
2	Fit fan with fan housing	Position the fan and fan housing-5- on the cover. Screw in fastening screws -4- and tighten to the specified torque. Refer to TIGHTENING TORQUES Clip wiring harness -6- onto the cover -arrow A-
3	Fit air guide	Position air guide -7-arrow B-
4.1	Install adjusting element	Clip in collar -3, -2-
4.2	Adjust rubber pad	Note: -2- The rubber pads -2-
5	Install upper part of lock	Position upper part of lock-9--8-
6	Install rear lid	Refer to REMOVING AND INSTALLING REAR COVER
7	Install rear spoiler
