Replacing the Targa model logo

  1. Determine the middle of the cover.
  2. Position the -Targa-  logo with the dimensions -A and B = 98.4 mm-  and -C = 29 +/-1 mm-  on the rear cover and affix.

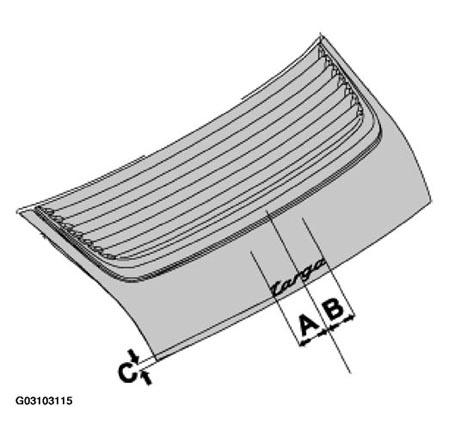

Fig 1: Identifying Dimensions Of Targa Model Logo
G03103115Courtesy of PORSCHE OF NORTH AMERICA, INC.
