Replacing the Carrera model logo as of model year 2002

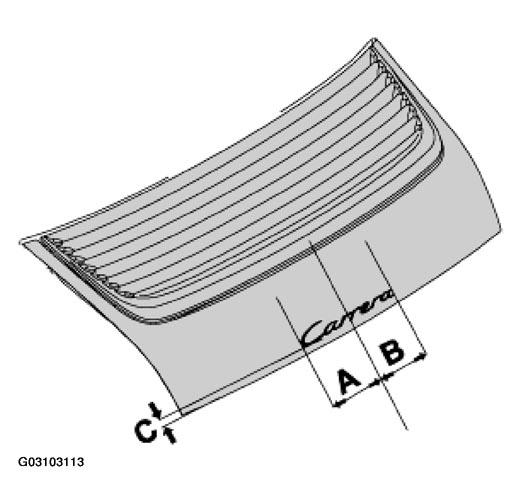

Fig 1: Identifying Dimensions Of Carrera Model Logo (As Of Model Year 2002)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Determine the middle of the cover.
2. Position the -Carrera  logo with the dimensions -A and B  = 129.6 mm- and -C=29+/-1 mm- on the rear cover and affix.
