Replacing the Carrera 4 model logo as of model year 2002

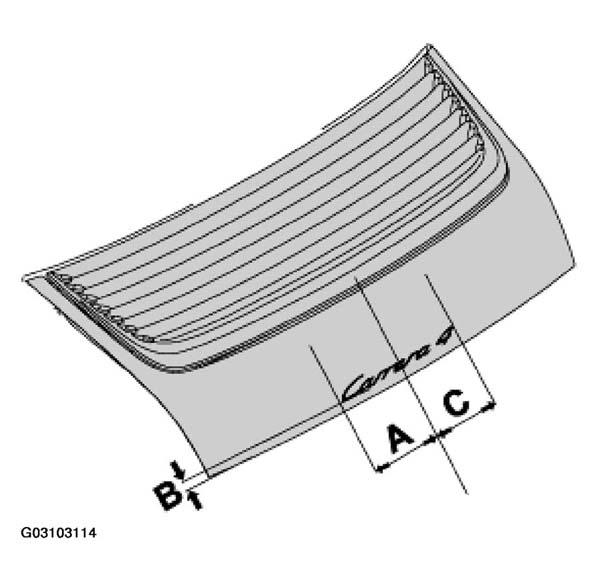

Fig 1: Identifying Dimensions Of Carrera 4 Model Logo (As Of Model Year 2002)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Determine the middle of the cover.
2. Position the -Carrera 4-  logo with the dimensions -A and B = 162.6 mm-  and -C = 29 +/-1 mm-  on the rear cover and affix.
