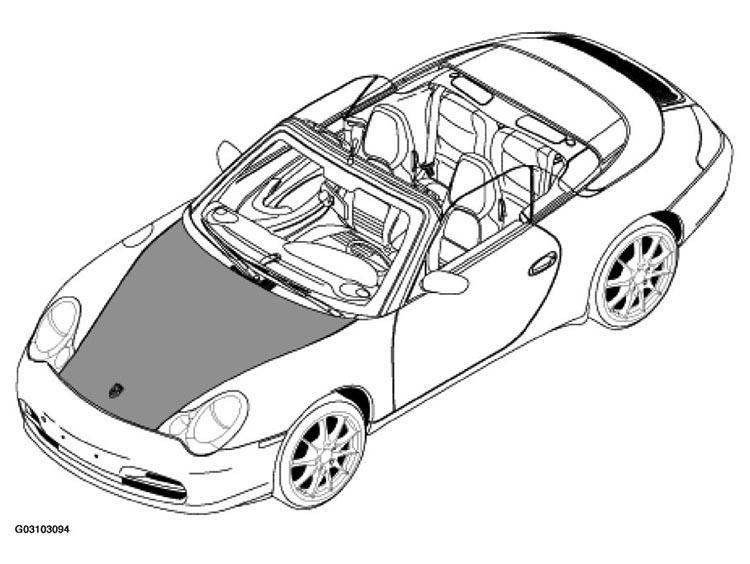

Disassembling and assembling front cover
NOTE:
- In the case of repair work (when replacing), accessories must be sealed before assembly (painting) according to the following illustrations.
- Refer to SEAM SEALS .

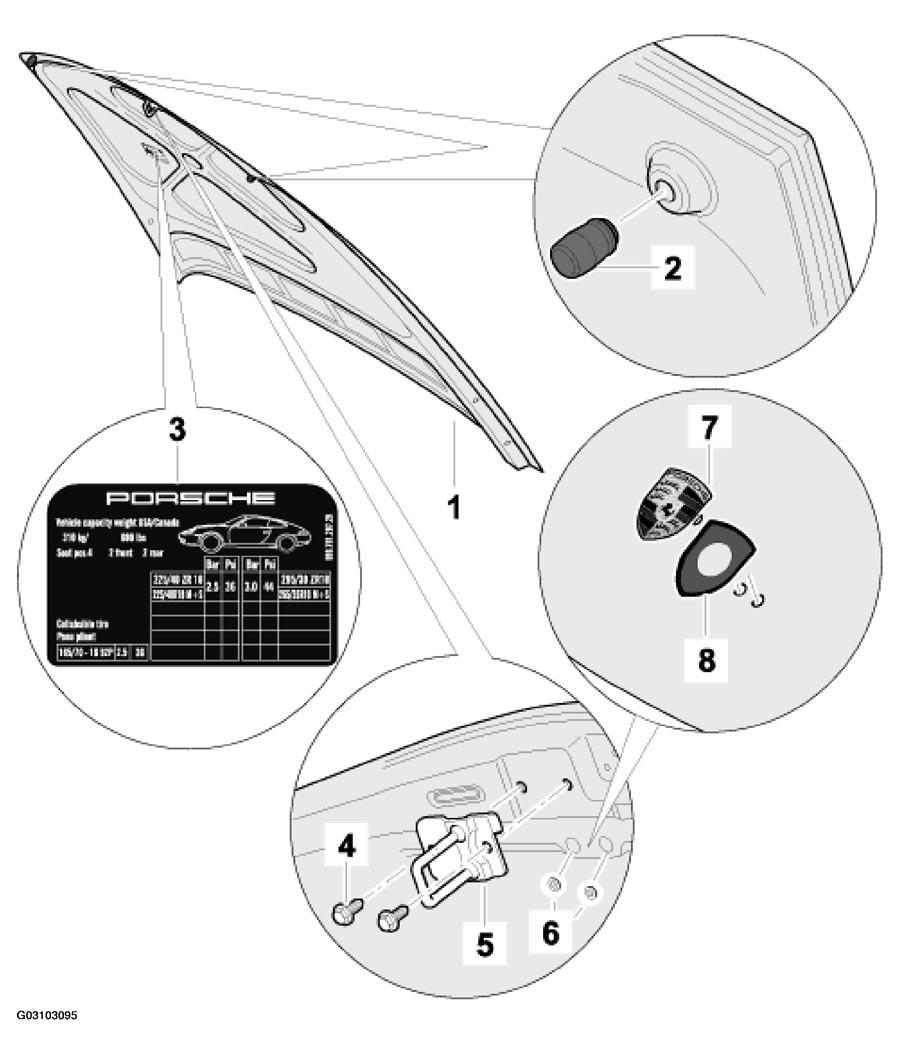

FRONT COVER REMOVAL AND INSTALLATION PROCEDURE CHART
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Covers | 1 | Adjust cover -1- | |
| 2 | Rubber buffer | 2 | Unscrew rubber pads -2- | Screw in rubber pads -2- |
| 3 | Self-adhesive label tire pressure | 1 | ||
| 4 | Combination screw M6x12 | 2 | Tightening torque:-10 Nm (7.5 ftlb.)- | |
| 5 | Upper part of the lock | Take upper part of lock -5-1- | Fasten upper part of lock 5--1-4- | |
| 6 | Tapping nut | 2 | Unscrew tapping nut -6- | Replace. |
| 7 | Badge on cover | Remove base -8--7- | Insert base -8-7-6- | |
| 8 | Base | 1 |
