Assembling release for front lid

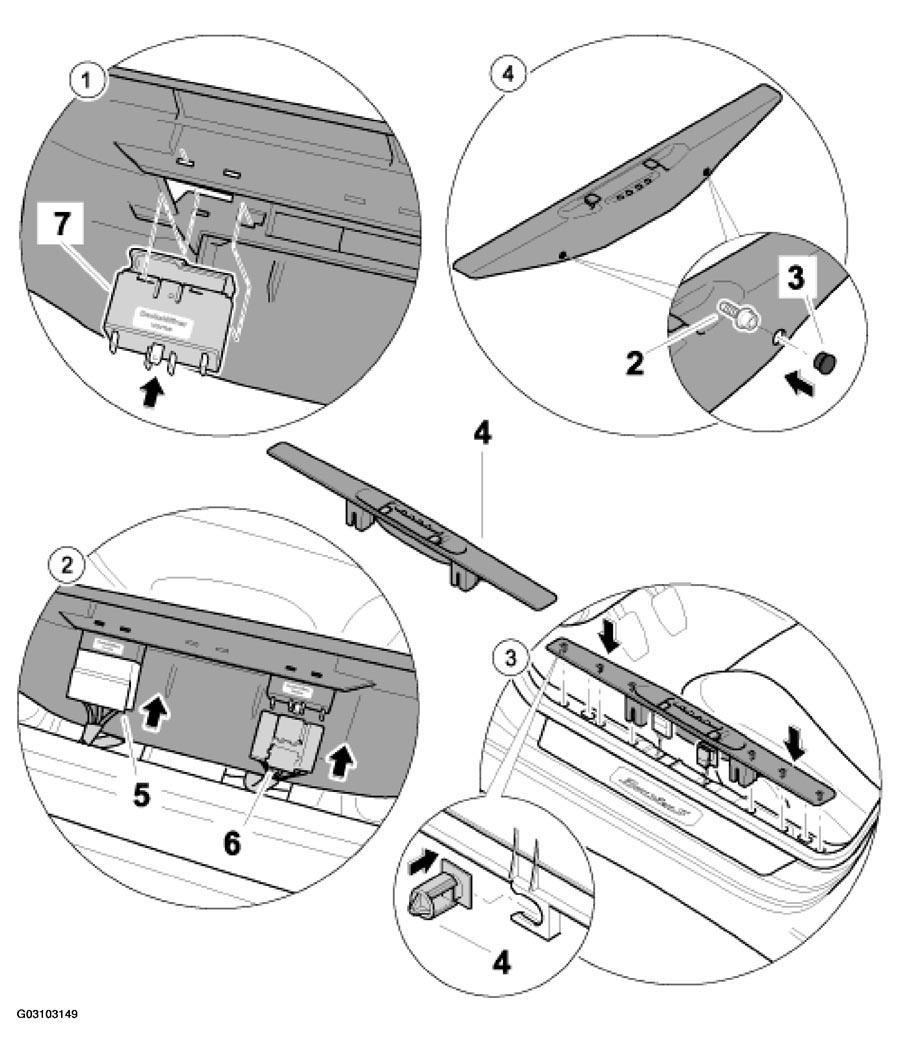

Fig 1: Assembling Release For Front Lid

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT LID RELEASE ASSEMBLING PROCEDURE CHART

No.	Procedure	Instructions
1	Installing actuating switch for front lid -7-	Clip locking tabs of the actuating switch for the front lid -7-
2	Joining plug connections -5, 6-	Push plug connections -5, 6-
3	Attaching sill -1-	Clip in new fastening clips -4-,-1-
4	Tightening hexagon socket head bolts -2-	Screw in hexagon socket head bolts -2,-3-
