Setting the door

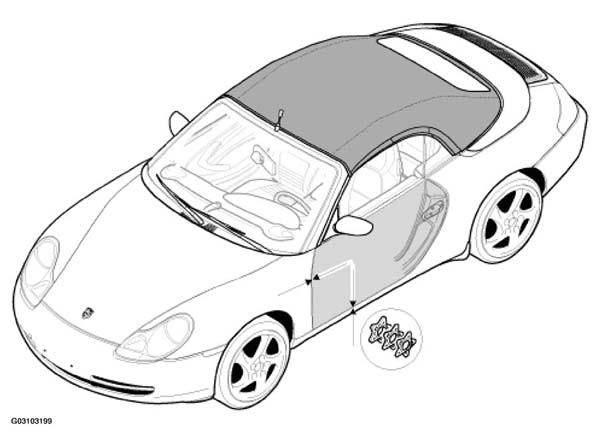

Fig 1: Locating Door Adjustment Shims

G03103199

Courtesy of PORSCHE OF NORTH AMERICA, INC.

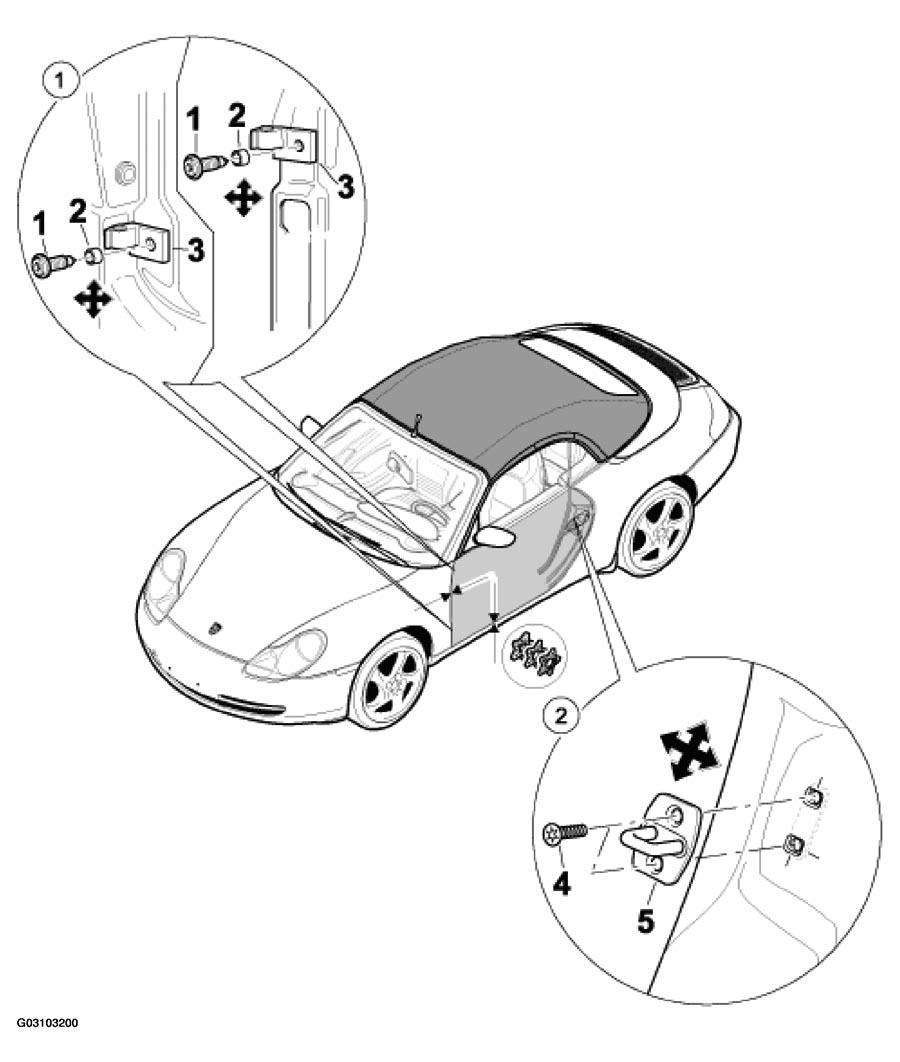

Fig 2: Setting The Door

G03103200

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DOOR SETTING PROCEDURE AND INSTRUCTION

No.	Procedure	Instructions
1	Setting the door at front	Undo fastening screw-1-, -3-, -2- Refer to body gap dimensions in DIAGRAM - BODY GAP DIMENSIONS .
2	Setting the door at rear	Undo fastening screw-4--5- Refer to body gap dimensions in DIAGRAM - BODY GAP DIMENSIONS .
